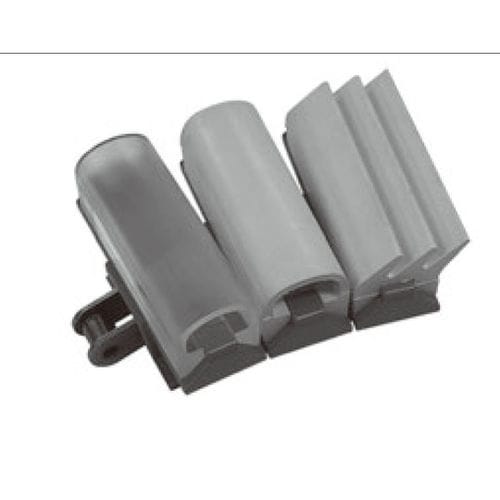

Gripper conveyor chain TP-1843 series

plasticflat top

Gripper chain capable of lifting and transporting It can grip the transported item from both sides and transport it up and down. The shape and material of the grip rubber can be selected. Only the top plate and grip rubber can be replaced. Features ・Gripper chains are chains that grip the transported item from both sides and raise and lower it. - You can choose the shape and material of the grip rubber. - The top plate and grip rubber can be replaced. Note 1. TP1843-G: Use an RS ​ 40 sprocket (17 teeth or more). Depending on the type and shape of the sprocket, the hub may interfere. Please process the hub diameter to be equal to or smaller than the sprocket pitch diameter - 19 mm. 2. TP-1873-G: Use an RS ​ 60 sprocket (16T or more teeth). Depending on the type and shape of the sprocket, the hub may interfere. Please process the hub diameter to be equal to or smaller than the sprocket pitch diameter - 38.1 mm. 3. Regularly apply oil between the top plate and the rail. Grip rubber material/shape It consists of a main chain, top plate, and grip rubber. When selecting a product, please select the main chain material, top plate material, and grip rubber material and shape. Notes: 1. Grip rubber D-shape is only available for TP-1873-G and TP-1873-AS-G. 2. The RJ-type grip rubber is only available for TP-1843-G and TP-1843-AS-G.
