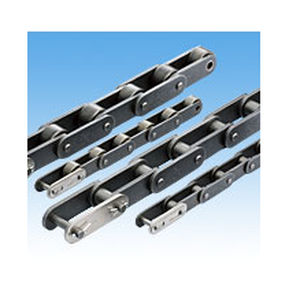

Steel conveyor chain RF series
attachmentdouble-pitchroller

steel conveyor chain
steel conveyor chain
steel conveyor chain
Add to favorites
Compare this product


Characteristics

Material
steel
Configuration
attachment, double-pitch
Other characteristics
small-size, roller, double-pitch
Width

Min.: 8 mm
(0 in)

Max.: 32 mm
(1 in)

Chain pitch

Min.: 25.4 mm
(1 in)

Max.: 101.6 mm
(4 in)

Tensile strength

Min.: 270 kgf

Max.: 4,170 kgf

Description

An attachment conveyor chain with double the pitch of RS Attachment Chain with a flat plate contour. Conforms to ISO1275-A, ASME B29.100, and JIS B1803 standards. Features ・High precision across the total length -- Ideal for relatively long span, low speed conveyance. ・Can use R or S rollers, allowing for use in various applications. ・Double Pitch type sprocket or RS sprocket (when the number of teeth is 30 or more with S roller) can be used. Attachment Types See below for attachment types. Attachment Types When selecting sprocket specifications It is necessary to select a sprocket specification that corresponds to the customer's operating environment and the chain specification used. Please use standard Double pitch steel sprockets for Double pitch chain. Standard RS steel sprockets can be used when the number of sprocket teeth is 30 or more with S roller.
