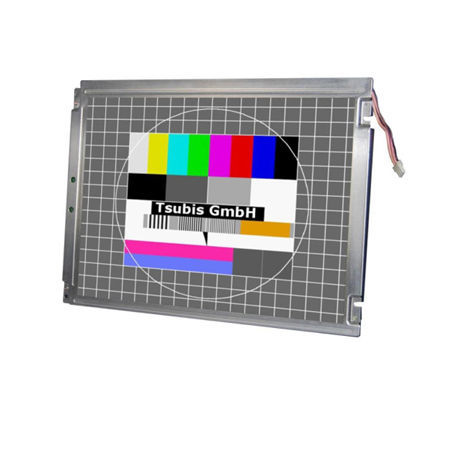

LCD/TFT replacement monitor A61L-0001 series
15"800 x 600640 x 480

LCD/TFT replacement monitor
LCD/TFT replacement monitor
LCD/TFT replacement monitor
LCD/TFT replacement monitor
Add to favorites
Compare this product


Display size
800 x 600, 640 x 480
industrial, for Fanuc control
Other characteristics


Replacement monitor for 9" monochrome CRT Fanuc 8,4" LCD industrial monitor as replacement for CRT monitor. Original monitor: 9" colour monitor, Monitor code: A61L-0001-0071, A61L-0001-0072, A61L-0001-0076, A61L-0001-0079, A61L-0001-0086, A61L-0001-0092, A61L-0001-0093 control unit: Fanuc 0, 0M, 0T, 6, 6MB, 6BT, 6T, 6B, 6M11, 11M, 11T Monitor manufacturer: D9MM-11A, MDT947B1A, MDT947B-1B, TX-901AB, KF-M7099H Technical specifications: Display/solution 8,4“ TFT Full Colour active / 800 x 600 Pixel Brightness 200 cd/m² Frequency 15-45 kHz horizontal, 50-75 Hz vertical Active area TFt screen 170 x 127 mm (W x H) Connector Honda jack, silver, 20 pin (male and female as equipment-pack) Housing dimension compatibel CNC Control Fanuc Power supply DC 24 V Settings via OSD (On Screen Display) Temperature range -10°C bis 55°C operating temperature Manufactured according to CE Industrienorm, EN55022, EN55024


No catalogs are available for this product.

See all of TSUBIS‘s catalogs
