CNC lathe HS series
horizontal2-axis3-axis

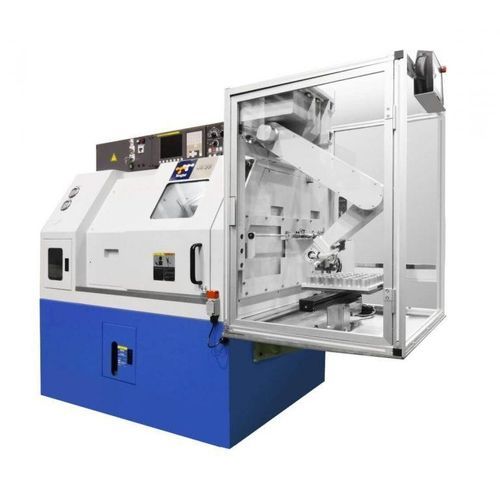

CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis - image - 2
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis - image - 3
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis - image - 4
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis - image - 5
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis - image - 6
CNC lathe - HS series - TTGroup - horizontal / 2-axis / 3-axis - image - 7
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis, 3-axis
Structure
rigid
Spindle mount
VDI 40
Number of tool stations
12 tools, 8 tools
Performance
high-productivity
Other characteristics
compact
Associated function
milling
Options and accessories
automated loading/unloading, with linear motor
Diameter

Max.: 51 mm
(2.01 in)

Min.: 26 mm
(1.02 in)

Spindle speed

4,500 rpm, 4,800 rpm, 6,000 rpm
(28,274.334 rad.min-1, 30,159.289 rad.min-1, 37,699.112 rad.min-1)

Axe X

155 mm
(6 in)

Axe Z

220 mm
(9 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

7.5 kW, 11 kW, 15 kW, 18.5 kW
(10.2 hp, 15 hp, 20.4 hp, 25.2 hp)
