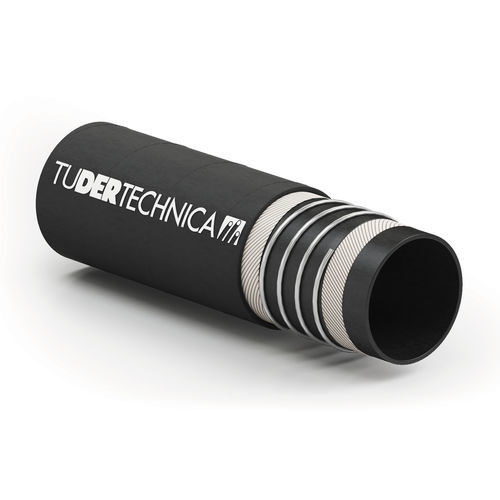

Water hose IDROCICLONEslurryfor abrasive productsnatural rubber
Add to favorites
Compare this product
Characteristics
- Use
- for water, slurry, for abrasive products
- Material
- natural rubber, SBR, synthetic
- Applications
- suction, discharge, construction, cleaning, for the mining industry
- Other characteristics
- abrasion-resistant, smooth, electrically-conductive, braided, with flange, spiral wire
- Inner diameter
Min.: 51 mm
(2.008 in)Max.: 305 mm
(12.008 in)- Outer diameter
Min.: 69 mm
(2.717 in)Max.: 337 mm
(13.268 in)- Pressure
4 bar
(58.015 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 70 °C
(158 °F)- Delivered length
12 m, 40 m
(39'04" , 131'02" )
Description
Suction and discharge rubber hose with NR tube, suitable for abrasive material mixed with water. Especially used in the crushing plants, cleaning and sorting plants, storage and trasport of slurry. The hose is readily provided with aluminum semi-flanges UNI EN 1092-1 PN 10 (ex UNI 2277) to be fixed with bolts to be external side of the hose.
Catalogs
IDROCICLONE
1 Pages
