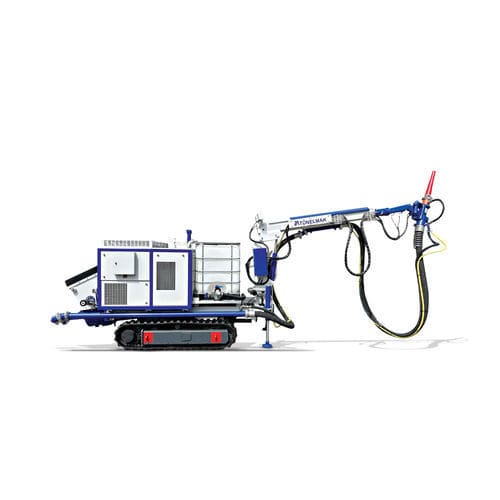

Crawler concrete pump Adroit 16DT

for tunnelundergroundoutdoor

Overview
Adroit 16DT is a crawler-mounted shotcrete pump with a Perkins diesel engine, providing a concrete pumping capacity of 16 m³/h. The machine is equipped with a cable remote control for driving, pump operation and boom movements. It is designed for narrow-profile tunnels and open-surface sites where truck-mounted pumps or 4×4 vehicles cannot operate.

Features

• 16 m³/h shotcrete pumping capacity
• 7.7 m lateral and 8.5 m vertical boom reach
• Perkins 36 kW diesel engine
• Crawler chassis with chassis-mounted telescopic boom (standard 7.5 m, optional extension)
• Cable remote control for drive, pump and boom

Description
The Adroit 16DT delivers low rebound together with reduced operating and maintenance costs. Its chassis-mounted telescopic boom improves access in confined tunnels and on uneven ground. The standard boom length is 7.5 m and can be optionally extended to increase reach. The unit balances mobility, pump performance and ease of control for both underground and surface spraying applications.

Technical specifications

• Commercial model: Adroit 16DT
• Type: Crawler shotcrete machine
• Concrete pumping capacity: 16 m³/h
• Boom reach: 7.7 m lateral, 8.5 m vertical
• Engine: Perkins diesel, 36 kW
• Control: Cable remote control for driving, pump control and boom movements
• Chassis: Crawler chassis
• Applications: Narrow-profile tunnels and open-surface applications
• Design highlights: Chassis-mounted telescopic boom; low rebound; low operating and maintenance costs
• Standard boom length: 7.5 m (optional extension available)
