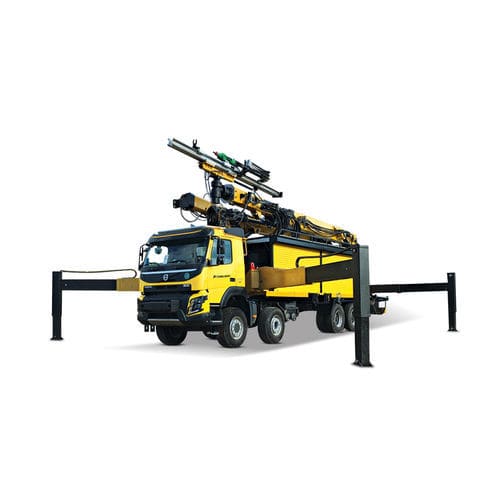

Multi-function vehicle Adroit 2230

diesel

Product overview
Adroit 2230 is designed for slope stabilisation applications in highway and railway construction. It is built to operate at elevations and in positions that are difficult to reach. The vehicle integrates four functions — bolt drilling, a basket platform, grouting and shotcrete application — into a single multifunctional unit.

Key features

• 2 booms
• Drilling capability up to 20 m height
• Shotcrete and grouting reach up to 25 m height
• Compressor capacity: 9.2 m³/min

Operational details

• One boom fitted with a driller performs bolt drilling operations up to 20 m in hard-to-reach areas
• The second boom carries a basket platform and hosts the concrete spraying unit and grouting system with reach up to 25 m

Applications

• Slope stabilisation for highway construction
• Slope stabilisation for railway construction

Technical specifications

• Number of booms: 2
• Drilling height (with driller boom): up to 20 m
• Shotcrete & grouting reach (with spraying/grouting boom): up to 25 m
• Compressor capacity: 9.2 m³/min
• Integrated functions: bolt drilling, basket platform, grouting, shotcrete application
