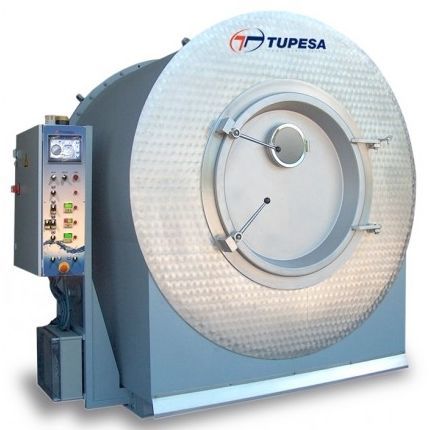

Automatic washing unit TC series

industrialfor the textile industry

Front loading machines for the washing and treatment of garments. Built in stainless steel AISI-304. Front loading and unloading door with tilting for automatic unloading of garments. Heating by direct steam. Programmer for automatic processes. Classic and solid machines equipped with the latest technology, with simple maintenance for long durability and providing the best results. - Constructed in AISI-304 Stainless Steel. - Front loading and unloading door with tilting for the automatic unloading of garments. - Galvanized steel chassis. - Direct steam heating. - Automatic process programmer. - Pulley transmission system. - Bearing stone wash protection. - Fiber side panels. Technical Specifications: - Speed inverter (4/28 rpm.) - Precentrifuge Speed Inverter at 4/50 rpm. or 4/130 rpm. - Supplementary Water Inlet. - Double drain. - Indirect steam chamber. - Aquasoft System: Heat exchanger, Kitchen set of 2, 3 or 4 12-gallon stainless steel tanks. With additional tank and pneumatic valves for the introduction of chemicals. - Three compartments drum: fixed or detachable. - Internal rotation door with compartments and pneumatic lock. - Temperature, time and volume control kit in manual mode. - Automatic greasing system. Capacity: - TC-150: 150 kg / 330 lb - TC-400: 400 kg / 880 lb Drum Diameter: - TC-150: 1,500 mm / 59" - TC-400: 1,800 mm / 70" Drum Depth: - TC-150: 920 mm / 36" - TC-400: 1,430 mm / 56" Drum Plate Thickness: - TC-150: 4 mm / 1/6" - TC-400: 5 mm / 1/5" Drum Volume: - TC-150: 1,625 liters / 430 gallons - TC-400: 3,600 liters / 950 gallons Water Inlet: - 2" Direct Steam Inlet: - TC-150: 3/4" - TC-400: 1 1/4" Air Inlet: - 6 / 1/4" Drain: - 150 mm / 6" Wash Velocity: - 28 rpm Motor Power: - TC-150: 5.5 kW / 7.5 Hp - TC-400: 18.4 kW / 25 Hp Weight: - TC-150: 3,200 kg / 7,055 lb - TC-400: 4,800 kg / 10,582 lb Dimensions: - Height (A): TC-150: 2,170 mm / 85.5", TC-400: 2,450 mm / 96.5" - Depth (B): TC-150: 2,060 mm / 81", TC-400: 2,820 mm / 111" - Tilting Depth (D): TC-150: 2,350 mm / 92.5", TC-400: 2,915 mm / 115" - Tilting Height (E): TC-150: 2,520 mm / 99.2", TC-400: 2,970 mm / 117" - Width (F): TC-150: 2,680 mm / 105.5", TC-400: 3,000 mm / 118.10"
