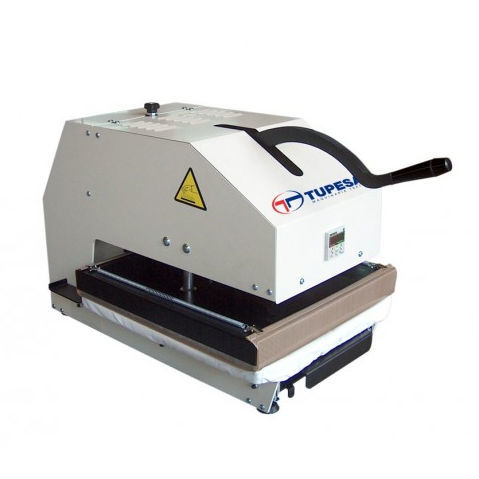

Electro-pneumatic hot foil stamping machine Stamp-400 series

for the textile industry

Includes a microprocessor that regulates temperature and time and controls the several safety devices. Process settings are always shown on the frontal display. Temperature is controlled by a high precision platinum probe (PT-100). Also includes an automatic stop in the event of emergency (pneumatic machine). It also includes an electronic control that dispenses resistance power for thermal inertias to prevent temperature oscillations. Machine starts turning automatic cut switch on (according to current regulations), which protects it thermally from short circuits and overloads. Machine work surface is 400 x 450 mm. - Characteristics - Electric Power: 4 kW (Stamp-400 and Stamp-400 3P) - Voltage: 230 V (Stamp-400), 220-380 V (Stamp-400 3P) - Air Consumption: 9.5 gal/min (Stamp-400), 26 gal/min (Stamp-400 3P) - Work Pressure: 87 psi (both models) - Weight: 136 lb (Stamp-400), 374 lb (Stamp-400 3P) - Maximum Temperature: 450 ºF (both models) - Dimensions - Height (A): 17.9 in. (Stamp-400), 49.2 in. (Stamp-400 3P) - Width (B): 16.1 in. (Stamp-400), 55.1 in. (Stamp-400 3P) - Depth (C): 26.3 in. (Stamp-400), 65 in. (Stamp-400 3P) - Product Code: Stamp - Availability: In Stock - Price: 0.00€ (Ex Tax: 0.00€) - Technical Specifications - Microprocessor regulation for temperature and time - High precision platinum probe (PT-100) - Automatic emergency stop (pneumatic machine) - Electronic control for resistance power - Automatic cut switch for thermal protection - Work surface: 400 x 450 mm
