Hydraulic hose UL-HWB323
synthetic rubberhigh-pressurehigh-temperature

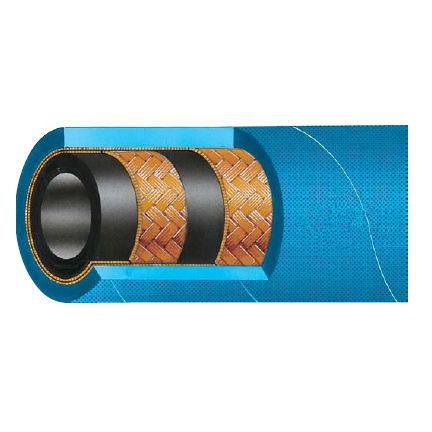

Hydraulic hose - UL-HWB323 - TURALI HOLDING - synthetic rubber / high-pressure / high-temperature
Hydraulic hose - UL-HWB323 - TURALI HOLDING - synthetic rubber / high-pressure / high-temperature
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Material
synthetic rubber
Applications
high-pressure, high-temperature, mining and quarrying, for hydraulic systems
Other characteristics
abrasion-resistant, oil-resistant, weather-resistant, wire-braided
Inner diameter

Min.: 4.8 mm
(0.189 in)

Max.: 76.2 mm
(3 in)

Outer diameter

Min.: 13.3 mm
(0.524 in)

Max.: 91.3 mm
(3.594 in)

Pressure

Min.: 50 bar
(725.189 psi)

Max.: 415 bar
(6,019.066 psi)

Temperature

Min.: -50 °C
(-58 °F)

Max.: 150 °C
(302 °F)

Description

TUBE : HIGH TEMPERATURE HYDRAULIC OlL RESISTANT SPECIAL SYNTHETIC RUBBER. REI NFORCEMENT :2HIGH TENSI LE STEEL Wl RE BRAID. COVER : OlL. ABRASION AND WEATHER RESISTANT SPECIAL SYNTHETIC RUBBER. APPU CATION : FOR MEDIUM-HIGH PRESSURE HYDRAUUC SYSTEMS IN INDUSTRY. COMPRESSORS AND MINING WHERE OPERATING TEMPERATURES ARE UP TO 150°C
