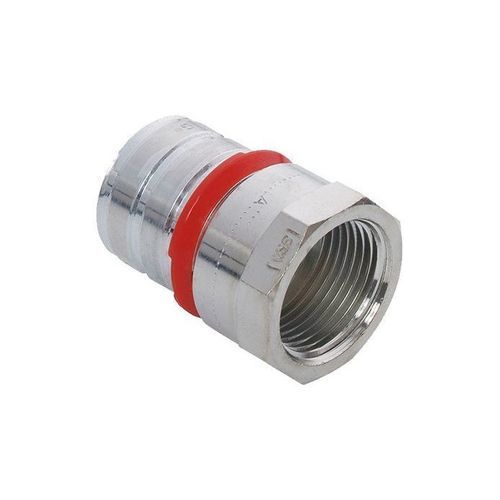

Fire protection sleeve MLC-S

tubularbrasscorrosion-resistant

Overview
MLC-S fittings are tin-plated brass fixed press sleeves and pressing jaw stops designed to connect concealed ceiling sprinklers to the extinguishing water supply. Compatible with Tyco Fire press fitting systems; the pressing jaw stop is red. Cylindrical female thread options conform to DIN EN 10226-1.

Listings and Approvals / Regional / Sizes
Listings and Approvals: VdS approval no. G 4060066
Regional availability: Available in Europe only
Sizes: Varies by model

Features

• VdS approved (no. G 4060066)
• Designed for concealed ceiling sprinkler connections
• Red pressing jaw stop for Tyco Fire press fittings

Benefits

• Simple installation — fast and clean installation without welding, soldering, thread-cutting or gluing
• Concealed integration — enables the sprinkler system to be integrated within the ceiling structure
• Corrosion resistant — tin-plated brass allows combined installation without restrictions from external corrosion protection

Technical specifications

• Model/Series: MLC-S
• Product name: MLC-S Fittings
• Brand: Tyco Fire
• Material: Tin-plated brass
• Type: Fixed press sleeves and pressing jaw stops
• Pressing jaw: Red pressing jaw stop
• Thread options: Cylindrical female thread per DIN EN 10226-1
• Intended use: Connect concealed ceiling sprinklers to extinguishing water supply
• Listings and approvals: VdS approval no. G 4060066
• Regional availability: Available in Europe only
• Sizes: Varies by model
