Hydraulic fitting MLC-S

screw-insmooth cylindricalmetal

Product Overview

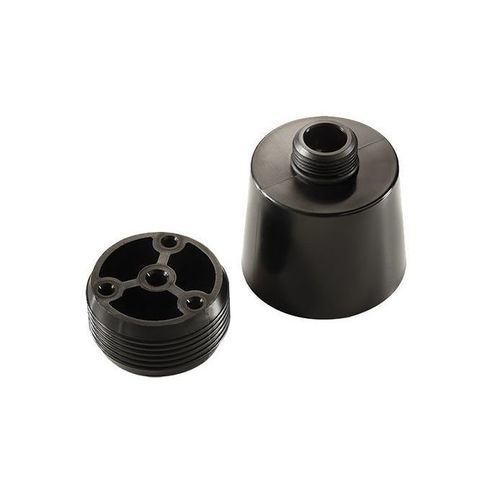

This universal casting cup is designed to be used in conjunction with an FSC (flush sprinkler for concrete). When sprinklers are installed in poured concrete ceiling or floor assemblies, the installation cup forms the recessed cavity into which the FSC sprinkler is installed. The product is supplied with a plug to fix the cup position using nails.

Table
Sizes: 1 inch
Type: Installation cup

Features

• Stainless steel option is non-reusable
• Plug available separately (PN 913131004)
• Available in Europe only
• Non-stainless steel option is reusable
• Refer to TFP645 for installation steps and listing information

Benefits

• Reduced oxygen diffusion: MLC-S pipes are fully resistant to oxygen diffusion, exceeding DIN 4726 requirements
• Flexible installation: multiple mounting options for poured concrete assemblies
• Reliable solution: completes flush sprinkler installations in concrete constructions

Technical Resources

• TFP645 Technical Data Sheet (FSC - Concrete Ceilings Sprinklers)
• Tyco MLC-S brochure and Tyco MLC-S Pipe System brochure

Technical specifications

• Model: MLC-S Casting Cup
• Sizes: 1 inch
• Type: Installation cup
• Compatibility: Designed for use with FSC (flush sprinkler for concrete)
• Includes: Plug to fix cup position (fixed with nails)
• Stainless steel option: non-reusable
• Non-stainless steel option: reusable
• Plug part number: PN 913131004 (sold separately)
• Region availability: Available in Europe only
