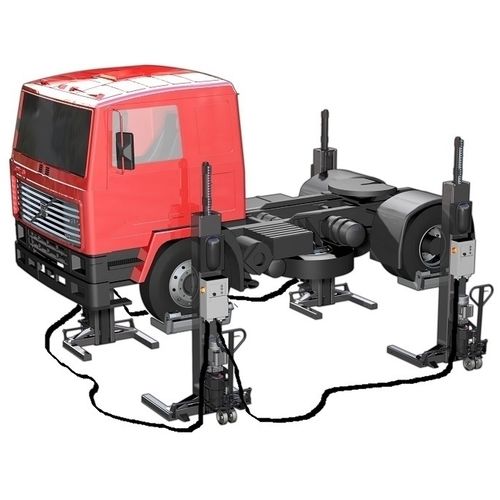

Electro-hydraulic mobile column TL55S

for trucksfor buses400 V

Our hydraulic TyreON TL55S mobile truck lift is moved like a pallet truck and can be used on paved flat grounds, indoors and outdoors. Perfect for lifting trucks and buses. Accurate manufactured by laser cutting and robot welding. Easy to operate with touch screen LCD colour display showing the status of various functions of the mobile truck lift. TyreON TL55S | 22T Capacity - 4 columns with controller This mobile truck lift system can be operated from all columns. The hydraulic mobile TyreON TL55S consists of 4 columns with a total lifting capacity of 22.000 kg. Each column is equipped with a 1.8 kW hydraulic pump-unit. The master column comes with an LCD colour touch screen and each column can be controlled individually, pairwise or per all lifting columns simultaneously. An advanced system with automatic lifting / lowering speed variety ensures optimal synchronization of all columns during lifting / lowering phase. Low maintenance - Hydraulic technology Leaving behind old screw- and chain driven systems, TyreON presents the hydraulic TL55S mobile heavy duty truck lifts. With microprocessor and own software for synchronous and smooth lifting and descending of heavy vehicles even with unequally distributed load. The system parameters including the lifting height per column are continuously displayed on the master column. Maintenance-friendly and a lifting speed of no less than 1.75 cm p/s is typical of this technology. Characteristics 400V electric hydraulic operation Fast, the truck comes to the highest lifting point within 100 seconds Lock-Function Thanks to the hydraulic trolley, the columns can be moved
