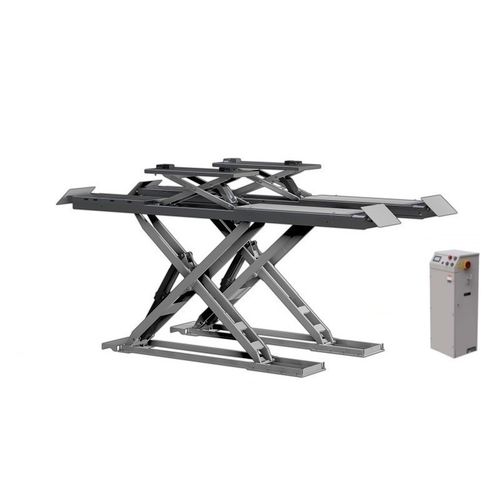

Scissors car lift TSC4000X2A

4 tonelectro-hydraulicfor car

TyreON TSC4000X2A Alignment scissor lift - inground installation Suitable for short and long passenger cars (multiple stretch extra large) vans and small lorries The 4.8 meter long runways are 60.8 cm wide With long scissors and oversized runways Two hydraulic cylinders for heavy lifting Manual override for descending in case of power outage (handpump) Reduction valve - Control over descending speed Safety valve (overload safety) - No damage to car lift in case of overload Ascending/descending in about 60 sec. Remote controlled lift of about 2,6 meter or less Entirely powder coated finish Required air pressure 6 - 8 bar Width 216 cm and total length 513 cm Weight of alignment scissor lift 2600 kg Required depth concrete floor 15-20 cm - C20/25 Simple installation with system integrated depressurization and runway leveling out procedure Controller L35,5 xW 37 x H108 (cm) 2nd scissor - Free Wheel system and wheel alignment With the extra long rear wheel plates and spacious recesses for turntables, the TSC4000X2A is suitable for aligning short and long chassis vehicles up to 4T. Regular and 3D wheel alignment Hydraulic free wheel system - 4000 kg Lift height 43 cm Extendable platforms 150 - 200 cm Runways with removable shims for turntables Runways with built-in movable rear wheel plates - mechanically lockable XL rear wheel plates - 1.8 meter Safety features - In Floor alignment scissor lift Voltage through entire lift and control panel is only 24V Automatic and accurate syncing function of the runways End height switch at 30 cm, additional manual input required for final stage of descending Lowered descending velocity during final stage.
