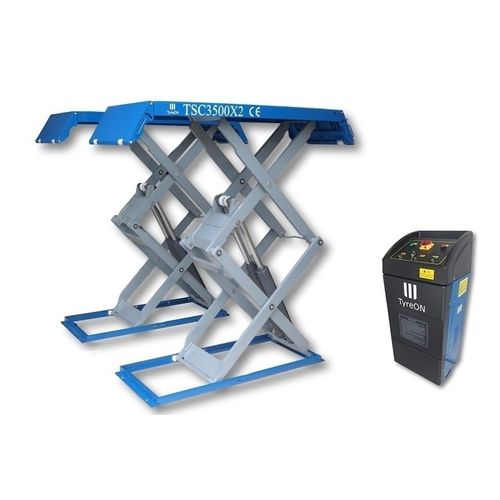

Double-scissor lift TSC3500X2
3.5 tonelectro-hydraulicelectromechanical

double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3.5 ton
Operation
electro-hydraulic, electromechanical
Voltage
400V
Applications
for car
Other characteristics
platform
Lifting height

Min.: 11.5 cm (4.528 in)

Max.: 200 cm (78.74 in)

Description

Full rise scissorlift TyreON supplies the TSC3500X2 with hydromechanical technology, low maintenance and a safe immediate descent are characteristic of this technology. Thanks to the laser detection, the lift stops at an uneven height of the platforms. Solid double car scissor lift for professional intensive use Hydro-mechanical lock with immediate descent Low voltage control system with all-in-one control panel The controller can be mounted on either side of the lift Shears made of solid steel and ribbed drive up ramps Tip-lever-lift system and finished with powder coating CE certified and 1 year warranty on parts Communicating cylinders, the lifting tables always go up and down exactly the same Easy fast installation, automatic venting and platform leveling Automatic venting and leveling This low profile double scissor lift is easily fixed to the floor and linked to the control unit with the hose set. With one button in the control unit the hydraulic system is vented and the tables are leveled at the same time. Other advantages Rubber protection flaps on the hoses under the ramps Easy car access thanks to the 63 cm wide tables and ramps with anti-slip profile Silent 3 kW Italian made hydraulic pump 16A fuse in the control unit The upward force and the descent speed are adjustable A pressure relief valve prevents damage when the vehicle is too heavy Protective hoods on all lifting cylinders Reinforcement profiles on under the lifting platforms Increased height of control console
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
