Lithium NMC battery system

squareflatultra-thin

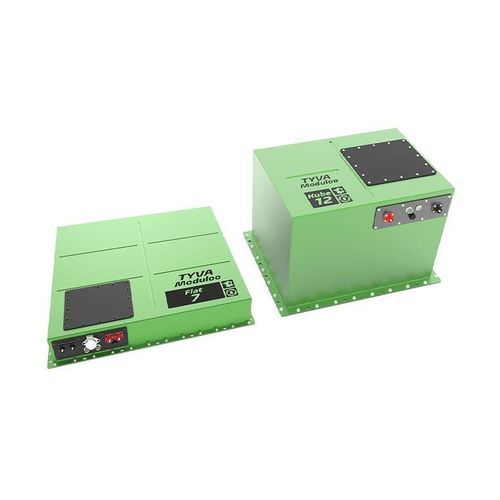

Overview The Flat and Kube range comprises high-energy-density lithium battery packs in distinctive formats. Designed for high-power applications (electric vehicles, agricultural vehicles, energy storage, etc.), these are TYVA Energie's largest lithium batteries. Units feature robust, sealed aluminum enclosures and offer two similar power levels; the main difference is form factor: the Flat model is low-profile and elongated, the Kube model is more cubic and taller. Both ranges integrate Moduloo Ax technology for modularity and high performance.

Applications

• Energy storage
• Off-road / vehicle retrofit / urban vehicles (LEZ)
• Military / Defense
• Marine / Nautical
• Electric mobility (buses, electric vehicles)
• Robotics, AGV

General characteristics

• Sealed aluminum enclosures (standard IP65; IP67 on some variants)
• Removable service panel for access to BMS and PDU
• Ultra-flat versions (e.g., 100 mm thickness for Flat)
• Moduloo Ax technology: modularity and performance (voltage and capacity configurable)
• Integrated systems: TYVA Energie BMS and optional PDU (switch box)
• Series and/or parallel connections possible (depending on model)
• IP67 sealed connectors available; removable front for easy connector replacement
• Discharge temperature: −20 °C to +60 °C
• Charge temperature: 0 °C to +45 °C
• Enclosures designed to withstand up to 3000 V (depending on finish)
• Weight: approximately 40 kg to 65 kg depending on model and configuration

Certifications The entire Flat & Kube range is UN 38.3 certified for transport. Other certifications listed as in progress: RoHS, R10 Rev.6, R100 Rev.3.

Product tables - Version « Energy » (excerpts) Flat 7 - Energy version
Voltage | Capacity | Energy | Configuration | Chemistry | Dimensions | Weight
25.55 V | 268 Ah | 6847.4 Wh | 7S80P | NMC | 710 x 720 x 104 mm | 40 kg
51.1 V | 134 Ah | 6847.4 Wh | 14S40P | NMC | 710 x 720 x 104 mm | 40 kg
102.2 V | 67 Ah | 6847.4 Wh | 28S20P | NMC | 710 x 720 x 104 mm | 40 kg

Kube 7 - Energy version
Voltage | Capacity | Energy | Configuration | Chemistry | Dimensions | Weight
25.55 V | 268 Ah | 6847.4 Wh | 7S80P | NMC | 486 x 482 x 183 mm | 40 kg
51.1 V | 134 Ah | 6847.4 Wh | 14S40P | NMC | 486 x 482 x 183 mm | 40 kg
102.2 V | 67 Ah | 6847.4 Wh | 28S20P | NMC | 486 x 482 x 183 mm | 40 kg

Flat 12 - Energy version
Voltage | Capacity | Energy | Configuration | Chemistry | Dimensions | Weight
25.55 V | 469 Ah | 11982.95 Wh | 7S140P | NMC | 940 x 696 x 104 mm | 65 kg
51.1 V | 234.5 Ah | 11982.95 Wh | 14S70P | NMC | 940 x 696 x 104 mm | 65 kg
178.85 V | 67 Ah | 11982.95 Wh | 49S20P | NMC | 940 x 696 x 104 mm | 65 kg
357.7 V | 33.5 Ah | 11982.95 Wh | 98S10P | NMC | 940 x 696 x 104 mm | 65 kg

Kube 12 - Energy version
Voltage | Capacity | Energy | Configuration | Chemistry | Dimensions | Weight
25.55 V | 469 Ah | 11982.95 Wh | 7S140P | NMC | 530 x 410 x 347 mm | 65 kg
51.1 V | 234.5 Ah | 11982.95 Wh | 14S70P | NMC | 530 x 410 x 347 mm | 65 kg
178.85 V | 67 Ah | 11982.95 Wh | 49S20P | NMC | 530 x 410 x 347 mm | 65 kg
357.7 V | 33.5 Ah | 11982.95 Wh | 98S10P | NMC | 530 x 410 x 347 mm | 65 kg

Version « Power » (excerpts) Flat 7 - Power version (examples)
Voltage | Capacity | Energy | Configuration | Chemistry | Dimensions | Weight
25.55 V | 240 Ah | 6132 Wh | 7S80P | NMC | 710 x 720 x 104 mm | 40 kg
51.1 V | 120 Ah | 6132 Wh | 14S40P | NMC | 710 x 720 x 104 mm | 40 kg
102.2 V | 60 Ah | 6132 Wh | 28S20P | NMC | 710 x 720 x 104 mm | 40 kg

Kube 7 - Power version (examples)
Voltage | Capacity | Energy | Configuration | Chemistry | Dimensions | Weight
25.55 V | 240 Ah | 6132 Wh | 7S80P | NMC | 486 x 482 x 183 mm | 40 kg
51.1 V | 120 Ah | 6132 Wh | 14S40P | NMC | 486 x 482 x 183 mm | 40 kg
102.2 V | 60 Ah | 6132 Wh | 28S20P | NMC | 486 x 482 x 183 mm | 40 kg

Notes The Flat & Kube ranges are customizable (made-to-measure): enclosure dimensions, voltage and capacity changes, modification of power and signal connectors, and addition of cooling systems on request.
