communication gateway / GPRS / for sensors



  • Type:


  • Network:


  • Other characteristics:

    for sensors


Product description:

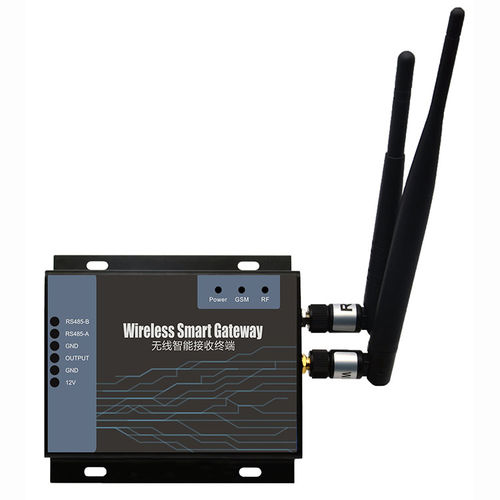

TZ-RD06 is a RF receiver that allows you to easily and comfortably manage many TZONE RF wireless temperature and humidity sensors TAG06 or TAG06B at once. Thanks to build in GSM and RF modules the Gateway receives the measurements from all sensors within its range and sends them to your Cloud platform account. TZ-RD06 also has a build in memory that allows it to save up to 10,000 measurements and, in case of temporary connection lost with the platform, the measurements can be uploaded after regaining connectivity. Your data is now safer than ever!

Main features:
• Backup battery for emergency use
• 100pcs sensors could be recognized at a time
• GSM/RS485/Modbus-RTU supported
• Transmission distance up to 300 meters in open area

Technical parameters:
Inner Lithium battery: Built-in 3.7V/850mAh(Rechargeable)
Power supply: DC12V
Maximum range in open area: 300 meters
GPRS frequency: 850/900/1800/1900MHz
RF frequency: 433MHz
Interface: GSM/RS485/Modbus-RTU
Dimension: 112mm*105mm*27mm
N.W: 270g
