Inkjet marking machine APLINK LRX

paperleatherplastic

At United Barcode Systems, we continue to evolve by developing solutions that combine industrial performance, operational simplicity, and maximum cost efficiency. The APLINK LRX Series has been specifically designed for high-resolution direct coding on secondary packaging, offering a flexible and reliable solution for production environments where traceability, speed, and print quality are essential.

High-Resolution Printing for Industrial Coding
The APLINK LRX Series delivers sharp, consistent, and high-quality printing directly onto cases and secondary packaging, helping manufacturers replace labels with a more efficient direct coding solution.

GS1-Compliant Coding: The equipment allows printing of 1D and 2D codes according to international GS1 standards, including GTIN-13, GTIN-14, GS1-128, GS1 DataMatrix, QR Code, EAN-UCC 13, Pharmacode, and more.

• Industrial Performance: With printing speeds of up to 80 m/min and a cadence of up to 10 prints per second, the APLINK LRX Series is designed to adapt to demanding production lines without compromising quality or reliability.

• Defined Quality: With a resolution of up to 180 dpi vertical and 540 dpi horizontal, the system ensures excellent contrast and definition for texts, logos, batches, barcodes, and variable data.

Maximum Flexibility on Any Surface
The APLINK LRX Series has been developed to provide maximum versatility in industrial coding applications, adapting to different materials, line configurations, and production needs.

• Print on Porous and Non-Porous Surfaces: The system enables high-quality printing on porous surfaces using mineral oil-free inks, as well as on non-porous surfaces with low-migration UV inks and UVLED curing technology.

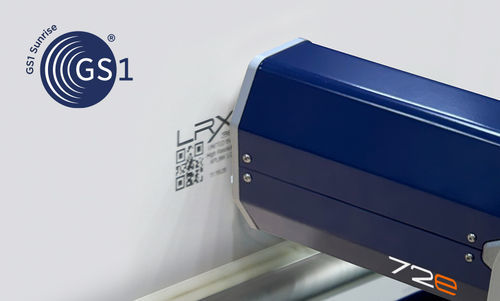

• Printing Height Options: Available with two piezoelectric printhead options, 36e and 72e, the APLINK LRX Series can print messages up to 36 mm or 72 mm high, with a maximum message length of up to 3 meters.

• Installation Versatility: Its printhead can be rotated from the standard side-printing position to a 90º position, allowing the equipment to adapt easily to different production line layouts and coding requirements.

Smart Connectivity and Data Management
The APLINK LRX Series is more than a printer: it is an intelligent coding solution designed to support digitalized production environments.

• ERP Integration: Through UBS LABMAN software, information can be transmitted directly from the ERP system to the printer, reducing manual intervention and minimizing the risk of data entry errors.

• Efficient Message Management: Its connectivity capabilities make it easier to manage variable data, production changes, and coding requirements in real time, helping manufacturers improve agility and process control.

• Integrated Touchscreen Display: The printer includes a full-colour 7” touchscreen integrated into the body of the equipment, protected with robust glass to withstand demanding industrial environments.

Designed for Minimum Maintenance
Operational simplicity is one of the key strengths of the APLINK LRX Series. Its technology reduces maintenance tasks and production stoppages, allowing teams to spend less time managing the printer and more time focusing on production.

• Plug and Print: The equipment is ready to print as soon as it is switched on, with no daily maintenance required and only recommended annual maintenance.

• Bottle Detection System: This system helps protect the printhead by preventing errors when changing ink type or colour, while also displaying ink expiry date warnings for greater process reliability.

Commitment to Efficiency and Sustainability
Sustainability is part of UBS’ approach to industrial innovation. The APLINK LRX Series stands out for its low power consumption, making it an environmentally friendly printing solution that helps reduce operating costs and supports more sustainable production processes.

In addition, by enabling direct coding on secondary packaging, the system contributes to maximum cost savings by reducing dependence on labels and simplifying the coding process.

Expertise and Authority in Every Print
By choosing the APLINK LRX Series, you benefit from United Barcode Systems’ extensive experience in industrial coding, marking, and traceability solutions. We do not simply provide printing equipment; we deliver an integrated solution designed to improve productivity, reduce operational complexity, and ensure reliable coding performance on every production line.
