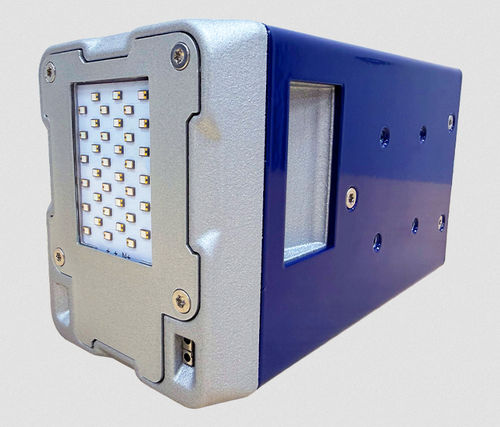

UV LED curing system UVLED 36X

high-performancein-lineindustrial

Product overview
UVLED 36X is a high-performance instant UVLED curing system designed for industrial coding and marking. It cures UVLED inks on porous and non-porous surfaces and is suitable for inline integration with industrial printers.

Applications

• Packaging
• Food
• Beverages
• Pharmaceuticals
• Cosmetic packaging
• Automotive
• Other industrial surfaces requiring UVLED ink curing

Key features

• Curing of UVLED ink on porous and non-porous surfaces.
• Curing speed up to 120 m/min (dependent on print resolution, message length, spacing and installation parameters).
• LED illumination enables curing up to a height of 36 mm.
• Fully manageable via UBS printer display with visual and intuitive parameter configuration.
• Easy-to-remove cover plate with quartz glass to protect LEDs and extend service life.

Working modes

• Stand Alone Mode — operates mechanically as a separate system.
• TTL Mode — synchronized operation with the printer.

Protection
The unit includes a removable cover plate holding a quartz glass plate to protect the LEDs and facilitate maintenance while extending component life.

Technical specifications

• Model: UVLED 36X
• Function: Instant UVLED curing system for industrial coding and marking
• Curing height: up to 36 mm
• Curing speed: up to 120 m/min (dependent on print and installation parameters)
• Working modes: Stand Alone, TTL (synchronized with printer)
• Integration: Manageable via UBS printer display; visual configuration of parameters
• Protection: Removable cover plate with quartz glass
• Suitable sectors: packaging, food & beverages, pharmaceuticals, cosmetics, automotive, other industrial applications
