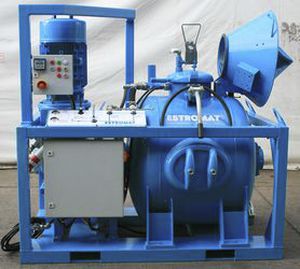

Electric screed mixing and coveying machine Estromat 850 K

Technical Data for the Standard Machine Motor capacity 30 kW voltage 400V/50HZ, three phase AC Mixer speed 42 rpm Vessel volume 850 l Useful volume approx. 650 I Conveying capacity* up to approx. 8 m³/h Conveying range* appr.80 m Required air pressure up to 6 bar Max vessel pressure 8 bar Required air quantity* 5 -15 m³/min Approval TUEH Length/width/height 2030/1400/1980 mm Empty weight approx. 1500 kg *) depending on compressed air supply available,conveying line cross section and material consistency Technical Data Type: ESTROMAT 850 Type of machine: air pressure conveyor, (without compressor) Charge: Bagbags Drive / Type of drive: 400V/50Hz, threephase / Gearmotor 30kW Mixer vessel: Volume 850 l, working volume up to 650 l MIXER: Mixing vessel with built in compulsory mixer
