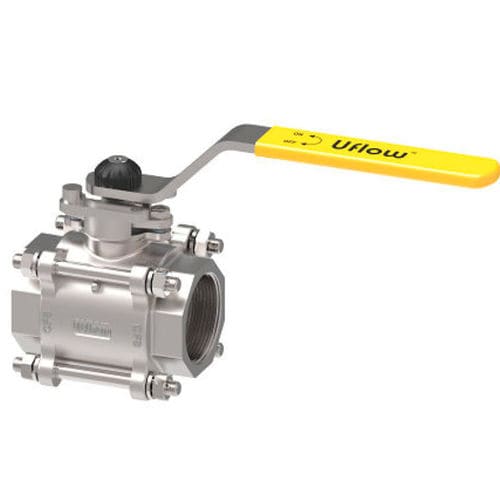

Ball valve JCleverflangethreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- flange, threaded, seat, 3-piece
- Material
- stainless steel
- Other characteristics
- ISO, standard, full-flow
- DN
Max.: 4 in
Min.: 0.5 in
- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
Face to Face - ASME B 16.10 (Flange end)
Pressure Class - 150#
Design Standard - ASME B16.10, ASME B16.25, ASME B16.34 ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
Body Material - CF8 / CF8M / WCB / CF3M
Tail Piece Material - CF8 / CF8M / WCB / CF3M
Bail Material - CF8 / CF8M
Body Seal Material - PTFE / RPTFE / CFT / GFT / PEEK
Seat Ring Material - PTFE / RPTFE / CFT / GFT / PEEK
Fastner Material - SS304 / SS316
Stem Seal Material - PTFE / RPTFE / CFT / GFT / PEEK
Features
3PC design twinseal ball valve.
Balls are precision machined and mirror finished for bubble-tight shutoff with less operating torque.
Blow out proof stem.
Hand Lever / Gear / Actuator Operated.
Face to Face:- ASME B16.10
End Connection:- Flanged (ASME B16.5), Buttweld (ASME B16.25).
ISO 5211 top mounting pad available for easy Uflow make actuator mounting.
Face to Face:- ASME B16.10.
