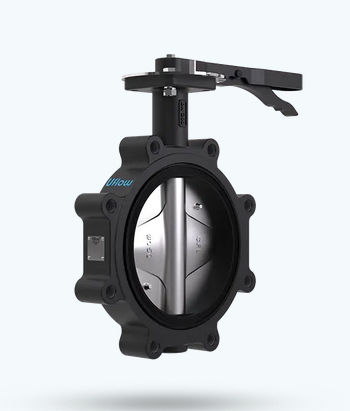

Butterfly valve BLleverfor controlmounting flange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Function
- for control
- Body
- mounting flange, seat, lug type
- Material
- EPDM, stainless steel, cast iron, NBR, silicone
- Other characteristics
- ISO, standard, bidirectional
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
6 bar, 10 bar, 16 bar
(87 psi, 145 psi, 232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
> Suitable to: ASMI B16.5 150#
> - Leakage Class: 100% Tightness at fully differential pressure
> - Standard: API 609, BS 5155, ISO 5211, API 598, ASME B16.5
> - Body Material: Cast Iron(Cl), SGI, WCB, CF8, CF8M
> - Disc Material: SGI, CF8, CF8M, WCB
> Body Liner / Seat Material: NBR, EPDM, VITON, SILICONE, PTFE
> Shaft Bearing Material: PTFE
Features
Bi-directional zéro leakage butterfly valve.
Accurate dual stem sealing prevents leakage.
Design Standard : ISO 5211, API 609, ASME B16.5 150#.
ISO Pad for mounting, Gear Operator / Actuator.
Standard flanged drilling : PN10/PN16, JIS10K/16K, ASME 125/150#.
Face to Face Dimension : API 609 (CAT A).
Operator : Hand Lever / Gear / Actuator.
Extremely small play between the stem and dise due to 'Double D'drive.
100% Tested With Pneumatic And Fluid (Water) Media.
Operator mounting flange : As per ISO 5211.
Leakage Class : 100% tightness at full differential Pressure.
