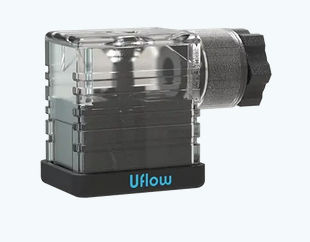

Solenoid connector electrical power supplyDINrectangular
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Shape
- rectangular
- Electrical characteristics
- insulation
- Material
- nylon, brass, rubber
- Product applications
- solenoid
- Other characteristics
- ISO
- Primary current
10 A
- Voltage
250 V
- Operating temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
> - v/ARating: 10A 250V AC
> - Contact Résistance (initial): 20 M Ohms Max.
> - Insulation Résistance At 500V DC: 100 M Ohms Min.
> - H.V. Break Down Test (For 1-Minute): 2 KV AC
> - Connector Mounting: Screw Mounting
> - Terminais: Solder Type
> - Permissible Temp. With / Without Load: 0°C to 90°C
> - Body Material: Poly Carbonate, Nylon GF (Black)
> - Rubber Gasket: NBR
> - Terminais / Contacts: Brass, Tin Plated
> - Reference Standard: DIN - 43650, ISO 4400, EN - 175,301 - 803
