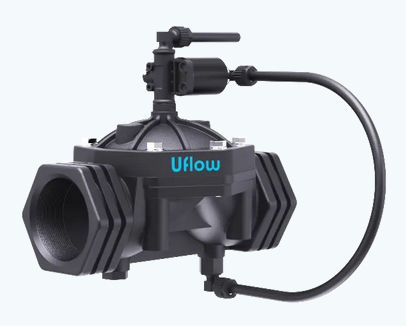

Diaphragm valve ENN seriespilot-operatedfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pilot-operated
- Media
- for water
- Body
- threaded, lockable
- Applications
- irrigation
- Material
- steel, rubber, nylon
- Other characteristics
- normally closed, corrosion-resistant, with seal, normally open
- DN
1.5 in, 2 in, 2.5 in, 3 in, 4 in
- Pressure
Min.: 1 bar
(14.5 psi)Max.: 10 bar
(145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Flow rate
60 m³/h, 70 m³/h, 80 m³/h, 90 m³/h, 190 m³/h
(2,118.88 ft³/h, 2,472.03 ft³/h, 2,825.17 ft³/h, 3,178.32 ft³/h, 6,709.79 ft³/h)
Description
> Port: Refer below technical data sheet (Available BSPT / NPT)
Main Features: Internai Parts are in superior corrosion résistance Steel, Suitable for irrigation.
coil features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Other Spécification Data: Available on Request
