Linear actuator RS
pneumatichydraulicscrew

linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
pneumatic, hydraulic
Technology
screw
Configuration
double-acting
Other characteristics
compact, rotating nut, backlash-free

Description

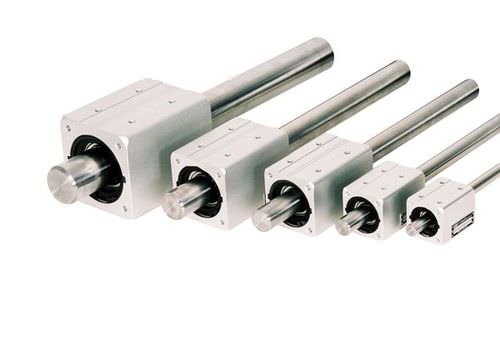

Uhing®-linear drive nuts (linear actuators) are non-positive drives which convert the rotation of a plain round shaft into a traversing movement. This effect is achieved by using rolling rings that are mounted on roller bearings and have a specially shaped running surface. These rings are pressed against the shaft so that they roll on the surface of the shaft at a specific angle. Characterstics: Backlash-free, low noise emission, high efficiency due to rolling on the shaft, travel and guide units, can be freely moved on the shaft by using a release lever, compact design, installation does not require much space, overload protection by slipping, side thrust can be multiplied by coupling several linear drive nuts, different pitch settings available, pitch can be set for either direction on the shaft, good sealing properties against dust, dirt, humidity, etc. Wherever linear movements are required, the Uhing®-linear drive nuts are a state-of-the-art alternative to hydraulic and pneumatic actuators, chain feeding systems and lead screws.

VIDEO
