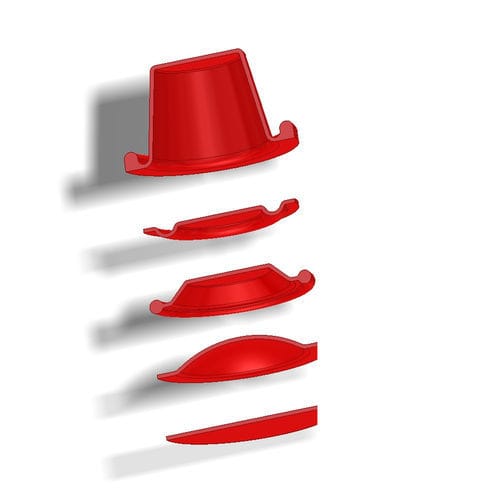

Elastomer diaphragm

sealingdiaphragm pumpfor pneumatic applications

Product overview
Elastomer diaphragms are sealing elements that act as flexible movable partitions providing hermetic sealing between two chambers. They can perform a stroke movement perpendicular to the clamping plane. Diaphragms require no maintenance, no lubrication, operate wear-free and have a long service life. Thin-walled designs run almost frictionless without breakaway torques.

Construction and options
Diaphragms are manufactured as single-component constructions and can be varied according to customer specifications, for example:

• with or without fabric reinforcement
• foil lamination
• metal core

All established material combinations are available; optionally compliant with KTW, FDA and W270.

Fields of application

• static
• dynamic
• single acting
• double acting
• linear
• rotating (inactive)
• oscillating

Main use
pump industry, process measurement and control technology, pneumatic actuators

Materials
elastomers, fabric reinforcement, metal, PTFE

Technical values

• Materials: elastomer, fabric, metal
• Pressure: up to 0.07 MPa
• Temperature: -50°C to +120°C (material dependent)
• Speed: application dependent

Notes
Maximum values for temperature, speed and pressure are not simultaneously applicable; the values vary depending on material and media.
