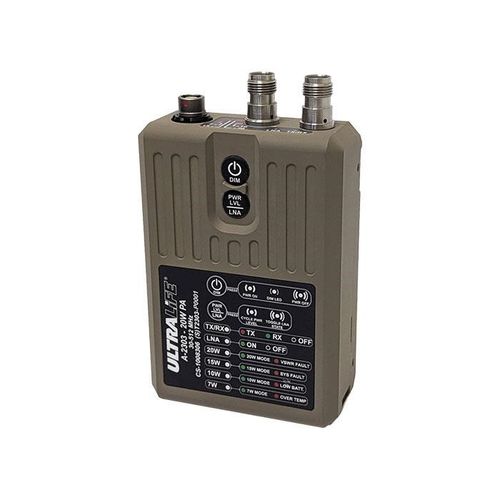

RF amplifier A-2303

compactminiatureportable

The A-2303 is the latest amplifier in Ultralife's long and successful history of RF amplifier development. The A-2303 amplifier continues the RF sensing technology we were first to develop over 20 years ago. All necessary radio interfacing is accomplished via a single RF cable. From here the amplifier then automatically performs all necessary detection and classification to provide a faithful reproduction of the radio RF with the desired amplification. The A-2303 is compatible with legacy waveforms as well as many modern proprietary and military waveforms. Optimized for use with low power PRR radios, delivering 20 watts with ~.75 watt of RF drive power. Remote On/Off control. Power for the optional active cooling module is provided on the bottom of the amplifier for seamless integration. Certifications - MIL-STD-810F, MIL-STD-1275, MIL-STD 461 RF Input - .75 to 5 watts Key Features - Frequency Range 30-512 MHz RF output power: 7-20 Watts Efficient design drawing ~2.25 amps Excellent thermal performance Switchable Receive LNA ~12dB gain <3dB Noise Figure 10-36 VDC operation for commercial or military vehicle and battery power sources Mil-Std harmonic performance Mil-STD 1275 compliant Smallest, lightest RF amplifier available
