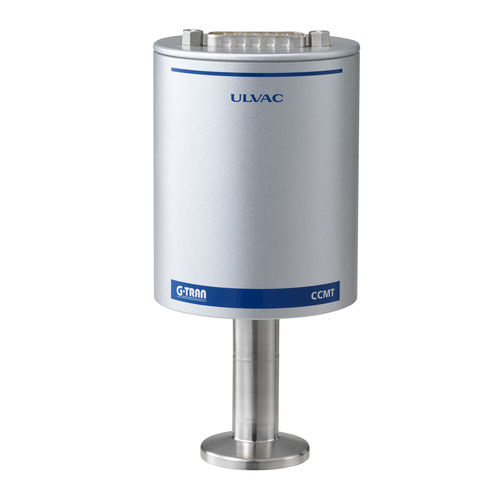

Capacitance meter CCMT-D series

CERAMIC CAPACITANCE MANOMETER, CCMT-D SERIES The CCMT-D series is a capacitance manometer, which detects static electric capacitance occurring when a barrier membrane made of ceramic (alumina) is deformed by changes in gas pressure.Adoption of Ceramic Sensor Corrosion resistant ceramic sensor Excellent long term signal stability Absolute Pressure Measurement Whole pressure measurement that does not depend on the gas types is possible Short Warm-up Time Fast stability after power on Temperature Compensation Protection Function Sensor protected against contamination Easy Zero Point Adjustment Push button zero point adjustment Output Signal Accurate linear output (DC 0 to 10V) Power Input Wide range voltage power supply (DC14 to 30V) Small Size and Lightweight Sensor Compact in size with 329g weight (pipe end type) Vacuum melting or vacuum heat treatment Thin ilms deposition system Pressure reduction furnaces Gas exchange or gas sealing etc. PV, FPD manufacturing equipment
