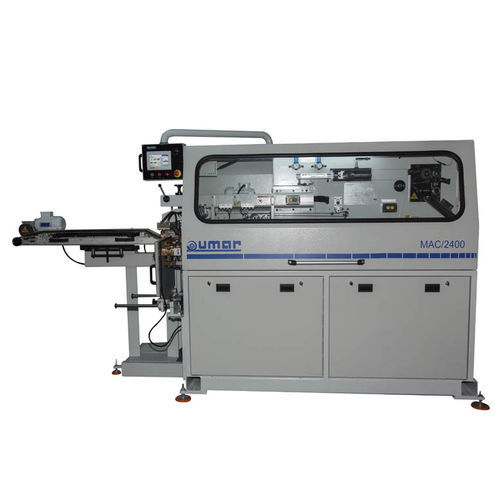

Can forming machine MAC/20640

coppermetalautomatic

Fully automatic machine is developed for giving cylindrical shape and seam welding operation of three-piece can bodies. Effective separation by powerful magnets and vacuumed sheet-feeding unit Three way easy loading possibility of the strips on hydraulic lift table Feeding of body to the welding rollers is done by servo drive linear axis Including exit conveyor and external cooling unit Easy adjustment and minimum tool changing time Movable control touch panel for easy-handy command All machine and safety devices are controlled by PLC with digital LCD display like double sheet, wire brake-off, low air pressure, cooling water heat, air pressure control and other operator safety components Modern and safety design with protection covers Electronic welding current control and welding speed adjustment The machine is ready for adding Powder Coating Equipment when it is needed Capacity - 60 cans/minute* Body Diameter - 140 - 295 mm Body Height - 100 - 380 mm Sheet Thickness - 0,2 - 0,40 mm Copper Wire Diameter - 1,38 - 1,50 mm Seam Overlap - 0,6 - 0,8mm Welding Speed - 12 - 21 m/minute* Welding Frequency - 135 Hz (Static) Operation Air Pressure - 5 Bar Total Connecting Load - 18kVa
