Mixing tank

distributionfruit juicefor end mills

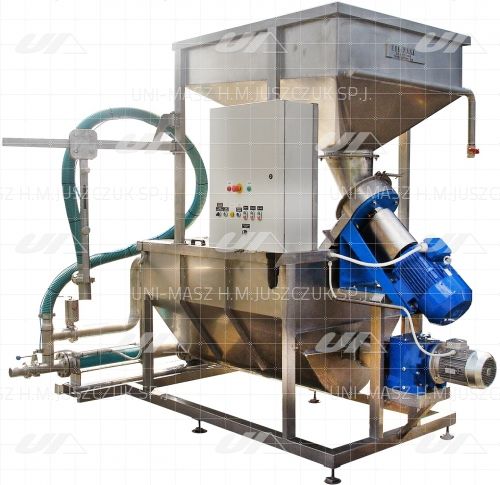

Unit used to: disintegrate, mix and press fresh fruit mash into barrels or tanks. Product in the shape of fresh fruits (you can also add frozen fruits) is placed in the top charge basket.Than the product is sucked and shredded by a shredder. After the shredder is falling down into the bottom tank. In this tank mixing process starts – homogenization of the mass and pumping in the screw pump funnel direction. Screw pump (with a rotor speed regulation – regulating capacity) is pushing product through the flexible rubber duct into the tank. Unit is equipped with mass level sensor in the bottom tank protecting the pump against working „dry”. Unit can cooperate with the pipe cooler to cool down the pressed mass. Unit is also equipped with the cleaning closed system. To dispense mash into the barrels you can use weight batching system. Four barrels are set on the euro pallet and the weighing unit. They are filled up one after another manually by the batcher automatically dosing the product accordingly to the set weight.
