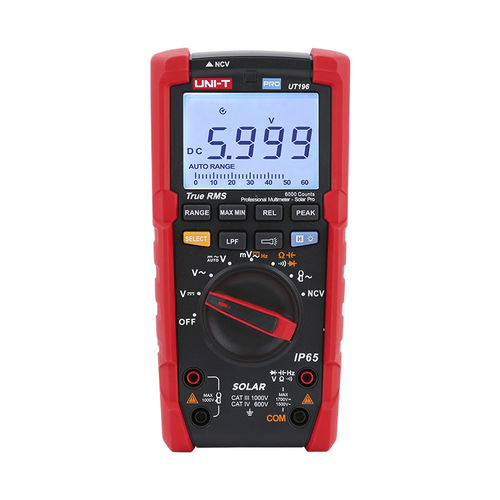

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.
Features of UT196 1700V DC True RMS Professional Multimeter – Solar Pro
Certifications: CE, UKCA, cETLus
● True RMS
● Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
● IP65 protection
● CAT III 1000V, CAT IV 600V
● Analog bar
● Frequency response:45Hz~1kHz
● Low-pass filter function
● Low impedance mode
● Built-in flashlight, bright backlight and visual alarm
General Characteristics
Power - 9V battery
Product color - Red+Gray
Product net weight - 485g
Product size - 195 x 95 x 58mm
Standard accessories - English manual, test leads, battery.
Standard individual packing - Gift box,carrying bag.
Standard quantity per carton - 10 pcs
Standard carton measurement - 480×370×195mm
