Electric forklift MX2 series
ride-onhandlingcompact

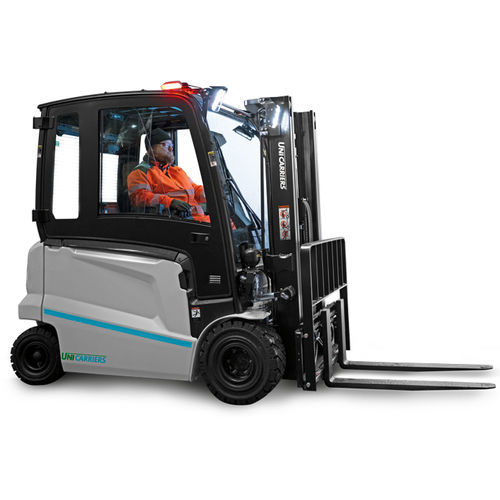

Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact
Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact
Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact - image - 2
Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact - image - 3
Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact - image - 4
Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact - image - 5
Electric forklift - MX2 series - UniCarriers® Forklifts - ride-on / handling / compact - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, compact, pneumatic tire, for heavy loads
Carrying capacity

Max.: 7,000 lb
(3,175.1 kg)

Min.: 5,000 lb
(2,268 kg)

Lifting height

170.3 mm, 171.1 mm, 171.5 mm
(6.7 in, 6.74 in, 6.75 in)

Overall width

1,000 mm, 1,190 mm
(39.4 in, 46.9 in)

Overall length

Max.: 2,558 mm
(100.7 in)

Min.: 2,389 mm
(94.1 in)

Load center distance

24 mm
(0.9 in)

Track width front

100 mm
(3.9 in)

Height of mast when lowered

4,325 mm, 4,355 mm
(170.3 in, 171.5 in)

Height to top of overhead guard

476 mm, 504 mm
(18.7 in, 19.8 in)

Length to fork face

Max.: 100.7 in

Min.: 94.1 in

Ground clearance under mast with load

105 mm, 115 mm
(4.1 in, 4.5 in)

Ground clearance at center of wheelbase with load

122 mm
(4.8 in)

Turning circle radius

1,920 mm, 2,064 mm
(75.6 in, 81.3 in)

Minimum distance between centres of rotation

1,920 mm
(75.6 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

0.5 m/s, 0.65 m/s
(1.64 ft/s, 2.133 ft/s)

Lowering speed

0.5 m/s, 0.55 m/s
(1.64 ft/s, 1.804 ft/s)

Gradeability

Max.: 38 %

Min.: 18 %

Rated output

20.8 kW, 25.5 kW
(28.3 hp, 34.7 hp)

Description

The MX2 Series of four-wheel electric pneumatic tire forklifts trucks feature high efficiency, durable build quality, and easy serviceability to help minimize downtime, maintain productivity, and lower total cost of ownership in some of the most demanding applications in the market. Features The Brakes You Need Sealed wet disc brakes tend to have longer life than traditional dry brake systems. The MX2 was designed with standard wet disc brakes in mind to minimize brake wear and extend timing needed between brake service helping to reduce maintenance costs and total cost of ownership. The spacious footwell provides additional comfort to enjoy a natural, ergonomic, foot position. The automatic parking brake activates without the need for traditional pedals, levers, or buttons. Built With Smart Systems Intelligent curve control Smoothly reduces lift truck speed when the truck senses that it is cornering. This reduces lateral forces on the operator, lift truck, and load. Intuitive Drive System Adapts performance in reaction to operator activation of travel and hydraulic functions to help ensure smooth movements, starts, and stops. Sensors react to the pressure that is applied to the accelerator pedal or hydraulic controls, which allows for an intuitive “feel”. High Efficiency Motors The MX2 series electric motor delivers instant torque to help maintain productivity and lift truck speed when the system senses speed reduction (eg., ramps). This advanced technology adjusts for heavy loads which ultimately creates more torque at low speeds and reduces energy consumption.
