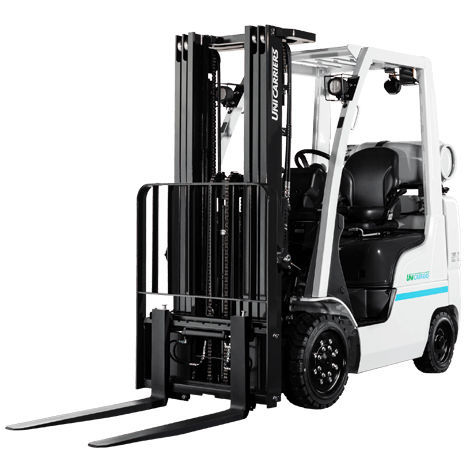

Cushion tire forklift CF series
combustion engineride-onhandling

Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 2
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 3
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 4
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 5
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 6
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 7
Cushion tire forklift - CF series - UniCarriers® Forklifts - combustion engine / ride-on / handling - image - 8
Add to favorites
Compare this product

Characteristics

Motor type
combustion engine
Operator
ride-on
Applications
handling
Other characteristics
compact, high-performance, cushion tire, rugged
Carrying capacity

3,000 lb, 8,000 lb
(1,360.8 kg, 3,628.7 kg)

Lifting height

122 in, 130 in

Overall width

32.4 in, 36.2 in, 40.2 in

Overall length

Min.: 81.9 in

Max.: 100 in

Load center distance

24 in

Weight without load

Min.: 5,980 lb
(2,712.5 kg)

Max.: 11,150 lb
(5,057.6 kg)

Axle loading with maximum load front

Min.: 720 lb
(326.6 kg)

Max.: 16,910 lb
(7,670.2 kg)

Axle loading with maximum load rear

Min.: 1,260 lb
(571.5 kg)

Max.: 2,960 lb
(1,342.6 kg)

Axle loading without load front

Min.: 1,880 lb
(852.8 kg)

Max.: 3,450 lb
(1,564.9 kg)

Axle loading without load rear

Min.: 3,780 kg
(8,333.5 lb)

Max.: 8,000 kg
(17,637 lb)

Track width front

Min.: 32.3 in

Max.: 37 in

Track width rear

Min.: 32.3 in

Max.: 36.6 in

Free lift

Min.: 4 in

Max.: 10.6 in

Overall height with mast raised

Min.: 175 in

Max.: 179.3 in

Height to top of overhead guard

Min.: 81.1 in

Max.: 82.3 in

Seat height

Min.: 43.3 in

Max.: 44.4 in

Length to fork face

Min.: 81.9 in

Max.: 100 in

Fork carriage width

Min.: 7.8 in

Max.: 38.9 in

Ground clearance under mast with load

Min.: 90 mm
(3.5 in)

Max.: 145 mm
(5.7 in)

Turning circle radius

Min.: 68.3 in

Max.: 83.9 in

Minimum distance between centres of rotation

Min.: 83.9 in

Max.: 101.8 in

Travel speed

17 km/h, 18.5 km/h
(10.6 mph, 11.5 mph)

Lifting speed

0.45 m/s, 0.65 m/s
(1.476 ft/s, 2.133 ft/s)

Lowering speed

0.45 m/s, 0.65 m/s
(1.476 ft/s, 2.133 ft/s)

Rated drawbar pull

Min.: 1,365 N

Max.: 2,825 N

Gradeability

16 %, 18 %, 24 %, 44 %

Rated output

41 kW, 46.9 kW
(55.7 hp, 63.8 hp)

Rated speed

2,700 rpm
(16,964.6 rad.min-1)

Cubic capacity

2,065 l, 2,488 l
(545.5 gal, 657.3 gal)

Description

Powered by our high-performance internal combustion engines, our rugged cushion tire forklift delivers greater torque and horsepower. Features Up Your Uptime When it comes to keeping your operation up and running, the CF30N-CF80N Series offers you significant advantages, beginning with a reliable cooling design, service reminders and longer maintenance intervals. Throughout this series, you will find innovative and proven protection and warning systems to help you maximize uptime, while minimizing cost. Our Seat Supports Your Driver And Your Productivity The lumbar support and weight adjustments create customized comfort for the operator, while a non-cinching seatbelt allows a wider range of movement. The full suspension design absorbs shocks for a smoother, more comfortable ride — and it’s all standard on CF30N-CF80N Series forklifts. Compact Design A small steering wheel and intuitive controls make these trucks highly suited for maneuverable performance within confined areas of the warehouse. Extended Service Intervais The electronic ignition system means you’ll service less often because the recommended times between routine maintenance is longer. And you’ll spend less time doing it because the critical service points — including fluids, filters and belts — are all readily accessible. Superior Visibility A standard high-visibility carriage* and your choice of an Watch Customer Testimonial ln the logistics industry, equipment reliability is critical to avoiding costly downtime. In this customer spotlight, LX Pantos détails how transitioning to UniCarriers equipment—supported by Sunbelt Material
