Gas forklift AF series
ride-onindooroutdoor

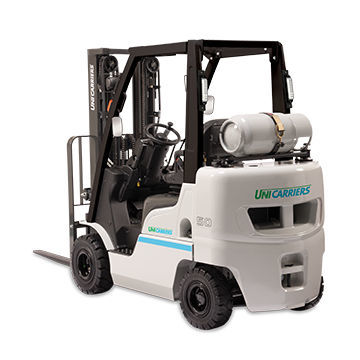

Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor
Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor
Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor - image - 2
Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor - image - 3
Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor - image - 4
Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor - image - 5
Gas forklift - AF series - UniCarriers® Forklifts - ride-on / indoor / outdoor - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
gas
Operator
ride-on
Applications
handling, loading, indoor, outdoor
Other characteristics
compact, cushion tire, rugged
Carrying capacity

3,000 lb, 3,500 lb, 5,000 lb
(1,360.8 kg, 1,587.6 kg, 2,268 kg)

Lifting height

130 in, 131 in

Overall width

1,035 mm, 1,175 mm
(40.7 in, 46.3 in)

Overall length

83.9 in, 85 in, 92.9 in

Load center distance

600 mm
(23.6 in)

Weight without load

2,660 kg, 2,835 kg, 3,585 kg
(5,864.3 lb, 6,250.1 lb, 7,903.6 lb)

Axle loading with maximum load front

3,570 kg, 3,940 kg, 4,795 kg
(7,870.5 lb, 8,686.2 lb, 10,571.2 lb)

Axle loading with maximum load rear

590 kg, 645 kg, 790 kg
(1,300.7 lb, 1,422 lb, 1,741.7 lb)

Axle loading without load front

980 kg, 1,030 kg, 1,210 kg
(2,160.5 lb, 2,270.8 lb, 2,667.6 lb)

Axle loading without load rear

1,630 kg, 1,855 kg, 2,375 kg
(3,593.5 lb, 4,089.6 lb, 5,236 lb)

Height of mast when lowered

82.8 in, 84.3 in

Free lift

105 mm, 155 mm
(4.1 in, 6.1 in)

Length to fork face

2,130 mm, 2,160 mm, 2,360 mm
(83.9 in, 85 in, 92.9 in)

Fork carriage width

36.2 in

Turning circle radius

72.6 in, 73.8 in, 80.7 in

Travel speed

17 km/h
(10.6 mph)

Lifting speed

0.62 m/s, 0.65 m/s
(2.034 ft/s, 2.133 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Gradeability

21 %, 26 %, 28 %, 34 %, 40 %

Description

The Nomad is the most unique vehicle of its kind and is ideally suited where both indoor and outdoor forklifts are needed. Its compact chassis provides tight handling and greater maneuverability inside the warehouse, while solid pneumatic tires deliver reliable performance out in the yard across improved surfaces. Capable of outdoor applications that cushion tire forklifts cannot negotiate. Features Versatility And Value Outdoors, the Nomad is a rugged workhorse forklift that’s ideal for demanding applications on any improved surface. Indoors, it’s a highly agile machine that easily maneuvers in tight spaces — but its unique capability to move from one environment to the other is what really sets it apart. Dual-Fuel Flexibility The Dual-Fuel model’s GK21 engine is powered by gas or LP — for high power and low emissions indoors and outdoors. Solid Performance Advantages The solid pneumatic tires enable the Nomad to work on a variety of surfaces found both inside and outside — from the factory floor to the loading dock and work yard. The Nomad also maintains higher capacity retention than similarly sized pneumatic forklifts while it virtually eliminates flat tires. Breathe Easier Whether you choose our LP or dual-fuel engine, our legendary GK21 provides the ultimate combination of power, torque, and low emissions. Big Time Comfort The Nomad may be compact on the outside, but it provides plenty of foot, leg and head room inside.
