Electric forklift BX series
ride-onhandlingcounterbalanced

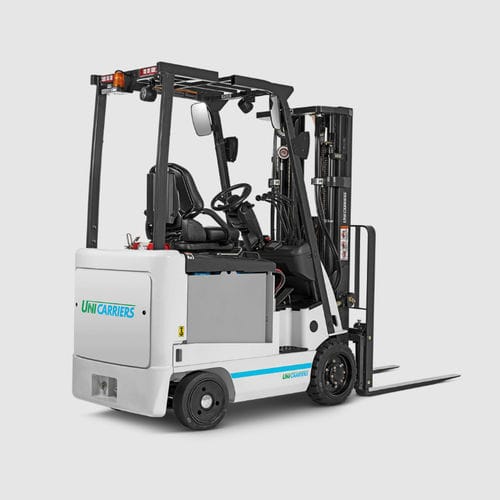

Electric forklift - BX series - UniCarriers® Forklifts - ride-on / handling / counterbalanced
Electric forklift - BX series - UniCarriers® Forklifts - ride-on / handling / counterbalanced
Electric forklift - BX series - UniCarriers® Forklifts - ride-on / handling / counterbalanced - image - 2
Electric forklift - BX series - UniCarriers® Forklifts - ride-on / handling / counterbalanced - image - 3
Electric forklift - BX series - UniCarriers® Forklifts - ride-on / handling / counterbalanced - image - 4
Electric forklift - BX series - UniCarriers® Forklifts - ride-on / handling / counterbalanced - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
counterbalanced, cushion tire
Carrying capacity

Min.: 3,000 lb
(1,360.8 kg)

Max.: 4,000 lb
(1,814.4 kg)

3,000 lb, 3,500 lb, 4,000 lb
(1,360.8 kg, 1,587.6 kg, 1,814.4 kg)

Lifting height

130.7 in

Overall width

947 mm, 990 mm, 1,045 mm
(37.3 in, 39 in, 41.1 in)

Overall length

3,050 mm
(120.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,845 kg, 3,085 kg, 3,345 kg
(6,272.2 lb, 6,801.3 lb, 7,374.5 lb)

Axle loading with maximum load front

3,750 kg, 4,200 kg, 4,250 kg
(8,267.3 lb, 9,259.4 lb, 9,369.6 lb)

Axle loading with maximum load rear

596 kg, 685 kg, 895 kg
(1,314 lb, 1,510.2 lb, 1,973.1 lb)

Axle loading without load front

950 kg, 1,050 kg, 1,125 kg
(2,094.4 lb, 2,314.9 lb, 2,480.2 lb)

Axle loading without load rear

1,720 kg, 2,035 kg, 2,305 kg
(3,792 lb, 4,486.4 lb, 5,081.7 lb)

Track width front

793 mm, 818 mm
(31.2 in, 32.2 in)

Track width rear

820 mm
(32.3 in)

Height of mast when lowered

2,110 mm
(83.1 in)

Free lift

115 mm
(4.5 in)

Overall height with mast raised

4,550 mm
(179.1 in)

Height to top of overhead guard

2,180 mm
(85.8 in)

Seat height

1,023 mm
(40.3 in)

Tow couplig height

234 mm
(9.2 in)

Length to fork face

1,980 mm, 2,055 mm
(78 in, 80.9 in)

Fork carriage width

Min.: 240 mm
(9.4 in)

Max.: 818 mm
(32.2 in)

Ground clearance under mast with load

75 mm
(3 in)

Ground clearance at center of wheelbase with load

100 mm
(3.9 in)

Minimum distance between centres of rotation

2,165 mm, 2,220 mm
(85.2 in, 87.4 in)

Lowering speed

0.41 m/s
(1.345 ft/s)

Gradeability

Min.: 15 %

Max.: 25 %

Maximum operating pressure

157 bar
(2,277.1 psi)

Description

The UniCarriers® BXC30N3-BXC40CN3 is a versatile electric cushion tire lift truck series that combines exceptional power efficiency with an advanced feature package that includes self-contained onboard diagnostics and mast interlock and it’s backed by the best, standard unlimited warranty in the business. Features Engineered with the Operator in Mind Features Within Easy Reach Efficient 2-Stage Hydraulics When operators move the hydraulic levers shorter distances, the hydraulic motor runs at a low speed to conserve energy while still providing sufficient flow for precise movements. Levers are strategically positioned on the dashboard for effortless access and precise control. 4” Full-Color Display The interactive 4" full color display on the BX provides operators and technicians with a wealth of information through its warnings and readouts. With 5 different preprogrammed performance modes and 3 different screen backgrounds to choose from, your operator can customize their driving experience. Emergency Battery Disconnect A clearly marked button that instantly shuts down the unit in critical situations for enhanced safety. On-the-Go Device Charging Optional USB port available for convenient charging of both work-related and personal devices. Fingertip Controls Faster, easier and more ergonomic, our optional fingertip control armrest simplifies simultaneous operation of hydraulic functions for greater productivity. Effortless Access. Streamlined Service. Built for Maximum Uptime At UniCarriers, we know that every minute counts. That’s why our trucks are engineered with smart design features that reduce maintenance time and keep your operation moving.
