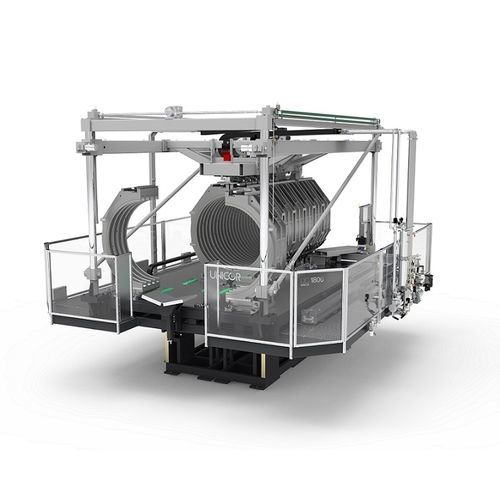

Corrugated pipe production corrugator UC 1800

for double-wall corrugated pipesfor extrusion lines

Various pipe lengths with socket By using the park station, different pipe lengths can be realized by simply changing the parameters without having to rebuild the machine. The control of the corrugator automatically adjusts to the preselected number of forming jaws. This means that different product lengths can be produced with one inline sleeve. Maximum outputs Middle channel length and a stable vacuum process are the main keys to achieve highest output. The shuttle principle and the separation of the mold blocks enable the maximum possible output High energy saving Up to 50% energy savings via a speed-controlled vacuum pumps with a connected load of only 3×11 kW. Highest quality & efficiency Highest quality of profile surface and profile shaping – thus easier processing and higher stability of the corrugated pipes, also with recycled materials. Specially developed die heads with low back pressure and thus higher throughput offer more efficiency and higher flexibility, also in material selection. Highest flexibility Diameter range from 500 i.d. to 1800 mm o.d. Production of all common drainage, sewer and storm water pipes without output reduction Compatibility of UC 1200 imperial mold blocks Maximum efficiency Direct-cooled aluminium mold blocks Minimal changeover time for mold blocks One drive unit for all applications Extremely low operating costs Speed regulated vacuum pump Only 20 °C cooling water inlet temperature necessary Total process control Electronic control of process air Registration and recording of all vacuum parameters Registration, recording and electrical control of all water inlet and outlet pressures as well as temperatures
