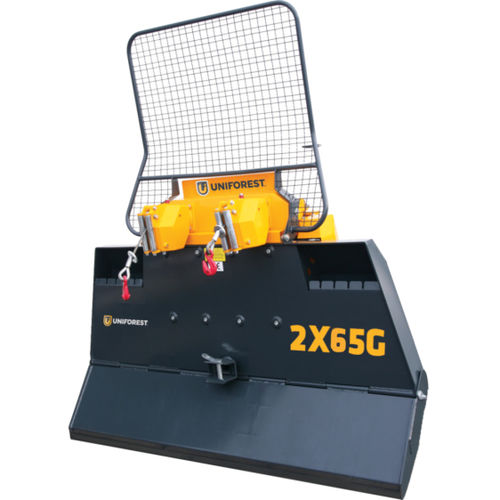

Hydraulic winch 2x65 G
pullingfor trailersgear

hydraulic winch
hydraulic winch
hydraulic winch
hydraulic winch
hydraulic winch
hydraulic winch
hydraulic winch
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Application
pulling
Products applications
for trailers
Other characteristics
gear, double-drum, with brake, drive
Capacity

6.5 t
(7.2 us ton)

Speed

0.7 m/s
(2.3 ft/s)

Description

Forestry winch 2x65 G has two independent hydraulic systems for each drum with pulling force of 6,5 t separately. It enables safe work, as the winch is positioned closer to the tractor, and the pulley is fixed lower, which puts the center of gravity of the winch lower. Therefore, there is less chance for the tractor to be lifted. Each drum has an extra large drum capacity, which allows more wound up wire rope. For easy work there are large storage places (PATENT) on the front of the winch, that the dirt from the wheels of the tractor does not get between the chain and other equipment. In order to facilitate the manipulation and stacking of logs, there is also a hydraulic hinged butt plate. SMART 3in1 AUTO STOP function (limit switch) Unwinding device Independent hydraulic system for each drum Convenient positioning Maxi drum Large storage spaces in front of winch Plenty of storage area for additional equipment Drive over bevel helical and spur gears Hydraulic hinged butt plate Foldable window guard
