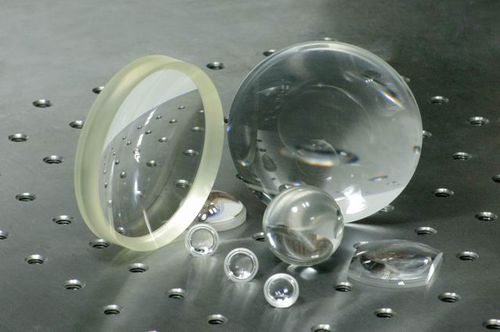

Spherical lens element Plano Convex Spherical Lens/PCX series
plano-convexsingletBK7

spherical lens element
spherical lens element
spherical lens element
Add to favorites
Compare this product


Characteristics

Geometry/curvature
spherical, plano-convex, singlet
Material
BK7, optical glass, fused silica
Optical characteristics
visible
Applications
laser
Other characteristics
with anti-reflective coating
Wavelength

213 nm, 2,200 nm

Diameter

Min.: 2 mm (0.08 in)

12.7 mm, 25.4 mm, 50.8 mm (0.5 in)

Max.: 500 mm (19.69 in)

Description

Lens can converge or diverge the transmission beam and form image of the object, Which is widely used in various applications. Union Optic can provide all kinds of spherical and cylindrical lenses. Usually lenses are not only used in visible band, but also in IR band and UV band, that means special material should be used. Now, Union Optic can offer lenses made of various materials such as CaF2, MgF2, Sapphire, Silicon, Germanium, ZnSe and etc. Union Optic can also provide various coatings for lenses upon your request. Specifications: Material BK7 or UV Fused Silica Dimension Tolerance +0/-0.2mm Thickness Tolerance ±0.2mm Design Wavelength 546.1nm Surface Quality 60/40 scratch and dig Flatness λ/4@632.8nm Centration 90% Chamfer Protective <0.5mmx45deg Coating available
