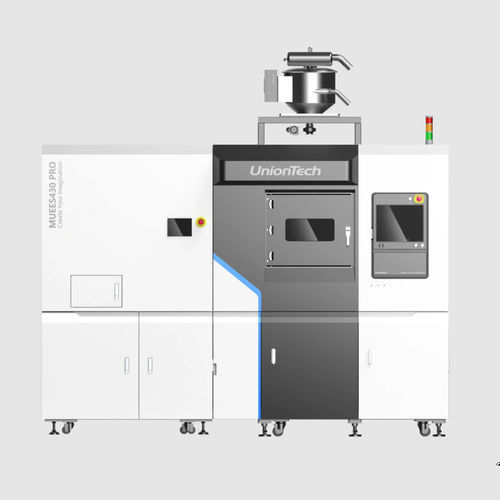

Stainless steel 3D printer MUEES430 PRO

aluminum alloyfor titanium alloysindustrial

Overview The MUEES430 PRO is an industrial metal 3D printer engineered for high-efficiency batch production. With four 500W Yb-fiber lasers and a build volume of 430 × 340 × 330 mm, it supports fast, high-precision metal additive manufacturing for aerospace, mold production and other demanding industrial sectors.

Highlights

• High production efficiency
• High-precision metal printing
• AI-powered chamber traceability
• Certified safety production
• Extended service life (>40,000 h)

Key features

• Multi-laser high-efficiency printing: Four 500W Yb-fiber lasers with high-speed galvo scanners enable scanning speeds up to 6 m/s to increase throughput for large-scale batch manufacturing.
• Fast bidirectional recoating technology: Bidirectional powder spreading reduces non-productive time and improves recoating efficiency by approximately 20% versus traditional unidirectional systems.
• Next-generation CFD airflow design: CFD-optimized flow path ensures uniform, stable airflow across the build chamber to maintain consistent part quality.
• High-precision optical monitoring: High-accuracy optical encoders deliver Z-axis precision within ±3 μm; real-time intelligent monitoring enables full build traceability.
• Self-developed circulation system: In-house atmosphere recirculation with sintering-plate design enlarges filter area and extends service life beyond 40,000 hours, reducing long-term maintenance costs.
• Comprehensive equipment safety: ISO 13849-compliant design, UPS backup for uninterrupted builds and dual fixed sealing technology providing zero-leakage protection for secure 24/7 operation.

Applications The MUEES430 PRO is optimized for smart manufacturing and mass-production workflows, delivering reliable, high-precision results for aerospace components, mold manufacturing (including tire molds), watch-case batch parts and other large-scale metal part production.

Characteristics / Technical specifications

• Materials: Stainless steel, aluminum alloy, high-strength aluminum, titanium alloy
• Build volume: 430 × 340 × 330 mm
• Laser type: Yb-fiber laser; 4 × 500 W
• Z-axis accuracy: ±3 μm
• Dimensional accuracy: L ≤ 100 mm: ±0.1 mm; L > 100 mm: ±0.1% × L
• Scan speed: Up to 6 m/s
• Layer thickness: 0.02–0.1 mm
• Preheating temperature: Max 200 °C
• Atmosphere / Oxygen level: Recirculation system maintains low-oxygen environment (min. oxygen level ≤ 100 ppm) suitable for reactive alloys such as titanium
• Relative humidity: ≤ 50%
• Machine weight: 2710 kg
• Machine dimensions: 3120 × 1470 × 2260 mm (including circulation unit)
