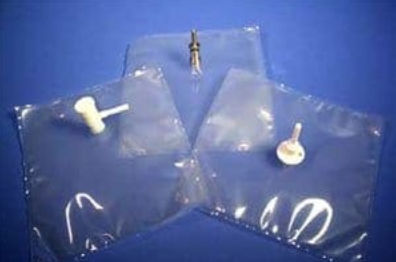

Sampling bag ALTEF®

with valvepolypropylene

Product overview
ALTEF® is a proprietary fluoropolymer film developed for air and gas sampling. ALTEF® provides inert, additive-free contact with sampled gases and is suitable for CO, CO2, methane and most VOCs. Available as single-use sampling bags in sizes from 0.6 L to 100 L with multiple valve and fitting options for field and laboratory use.

ALTEF® Film Properties

• Thickness: 0.003"
• Specific gravity: 1.78
• Tensile strength: 6100 psi
• Maximum operating temperature: 300° F
• H2O vapor permeability: 12–15 cc/cm3·d
• CO2 permeability: 172 cc/cm3·d
• O2 permeability: 58 cc/cm3·d

Advantages of ALTEF® Film

• Inert to most compounds including acids, alcohols, chlorinated solvents and aromatics.
• High stability for sampled gases such as CO, CO2, methane and most VOCs.
• Longer storage times for many VOCs versus Tedlar®; lower VOC and sulfur background.
• Inherently pure material with no additives, fillers or pigments; does not release DMAC or phenols.
• Abrasion resistant and suitable for field handling.

Gas Sampling Bags with Valve Combination (Screw Cap Combo Valve with Septum)

• Screw Cap Combo | UGSSP000-0606S | 0.6 L | AMT 10
• Screw Cap Combo | UGSSP001-0707S | 1 L | AMT 10
• Screw Cap Combo | UGSSP000-0610S | 1.2 L | AMT 10
• Screw Cap Combo | UGSSP002-0909S | 2 L | AMT 10
• Screw Cap Combo | UGSSP003-1010S | 3 L | AMT 10
• Screw Cap Combo | UGSSP005-1212S | 5 L | AMT 10
• Screw Cap Combo | UGSSP007-1215S | 7 L | AMT 10
• Screw Cap Combo | UGSSP008-1217S | 8 L | AMT 10
• Screw Cap Combo | UGSSP009-1218S | 9.5 L | AMT 10
• Screw Cap Combo | UGSSP010-1219S | 10 L | AMT 10
• Screw Cap Combo | UGSSP012-1221S | 12 L | AMT 5
• Screw Cap Combo | UGSSP016-1818S | 16 L | AMT 5
• Screw Cap Combo | UGSSP025-1824S | 25 L | AMT 5
• Screw Cap Combo | UGSSP040-2424S | 40 L | AMT 5
• Screw Cap Combo | UGSSP056-2430S | 56 L | AMT 3
• Screw Cap Combo | UGSSP073-2436S | 73 L | AMT 3
• Screw Cap Combo | UGSSP080-3030S | 80 L | AMT 3
• Screw Cap Combo | UGSSP100-3036S | 100 L | AMT 3

Gas Sampling Bags with Valve Combination (Locking Combo Valve with Septum)

• Locking Combo | UGSSP000-0606 | 0.6 L | AMT 10
• Locking Combo | UGSSP001-0707 | 1 L | AMT 10
• Locking Combo | UGSSP000-0610 | 1.2 L | AMT 10
• Locking Combo | UGSSP002-0909 | 2 L | AMT 10
• Locking Combo | UGSSP003-1010 | 3 L | AMT 10
• Locking Combo | UGSSP005-1212 | 5 L | AMT 10
• Locking Combo | UGSSP007-1215 | 7 L | AMT 10
• Locking Combo | UGSSP008-1217 | 8 L | AMT 10
• Locking Combo | UGSSP009-1218 | 9.5 L | AMT 10
• Locking Combo | UGSSP010-1219 | 10 L | AMT 10
• Locking Combo | UGSSP012-1221 | 12 L | AMT 5
• Locking Combo | UGSSP016-1818 | 16 L | AMT 5
• Locking Combo | UGSSP025-1824 | 25 L | AMT 5
• Locking Combo | UGSSP040-2424 | 40 L | AMT 5
• Locking Combo | UGSSP056-2430 | 56 L | AMT 3
• Locking Combo | UGSSP073-2436 | 73 L | AMT 3
• Locking Combo | UGSSP080-3030 | 80 L | AMT 3
• Locking Combo | UGSSP100-3036 | 100 L | AMT 3

Gas Bag Fittings — key features by fitting type
Polypropylene Screw-Cap Combo Valve

• On/off valve with replaceable fluoropolymer-faced, low-bleed silicone septum and side port for tubing.
• Inexpensive, lightweight and quick to operate (≤ half turn); inert polypropylene body to preserve sample purity.
• Visual confirmation of open/closed position; suitable for routine field sampling.

Polypropylene Locking® Combo Valve with Septum

• On/off locking valve with replaceable fluoropolymer-faced, low-bleed silicone septum allowing repeated punctures without leakage.
• Fast push/pull operation (<1 second); inert polypropylene construction and visual locking confirmation.

Stainless Steel TCLP Fitting with Septum

• Stainless steel body with aluminum cap and replaceable fluoropolymer-faced septum; designed for Zero Headspace Extractors and EPA TCLP use.
• Durable for demanding sampling conditions; inert contact materials minimize contamination risk.

Stainless Steel Combo Valve with Replaceable Septum

• Combined on/off valve and septum in one fitting to reduce weight and simplify sampling.
• Stainless steel body with aluminum cap; durable and inert sample contact surfaces.

Swagelok® type Stainless Steel Fitting (for tubing or septum)

• Stainless steel construction for field durability; allows tubing attachment or syringe extraction by switching caps.
• Large-area, replaceable fluoropolymer-faced septum for multiple syringe punctures.

Plastic Jaco® Fitting (for tubing or septum)

• Polypropylene molded compression ferrule secures tubing; economical alternative to metal fittings.
• Allows tubing attachment or syringe extraction; replaceable fluoropolymer-faced septum.

PFA Fitting (for tubing or septum)

• PFA fluoropolymer construction so sample contacts only high-purity inert fluoropolymer for maximum chemical resistance and low contamination.
• Compression ferrule secures tubing; replaceable fluoropolymer-faced septum with large area for repeated punctures.

Nickel Plated Halkey® Roberts Barbed On/Off Valve

• Nickel-plated to resist aggressive chemicals; barbed stem for secure tubing attachment and leak-resistant closed position.

Technical specifications

• Material: ALTEF® fluoropolymer film (inherently pure; no additives, fillers or pigments).
• Thickness: 0.003".
• Specific gravity: 1.78.
• Tensile strength: 6100 psi.
• Maximum operating temperature: 300° F.
• Permeabilities: H2O vapor 12–15 cc/cm3·d; CO2 172 cc/cm3·d; O2 58 cc/cm3·d.
• Chemical compatibility: inert to acids, alcohols, chlorinated solvents and aromatics.
• Sampling stability: suitable for CO, CO2, methane and most VOCs; extended VOC storage vs Tedlar®; lower VOC and sulfur background; does not release DMAC or phenols.
• Available valve/fitting options and typical bag volumes: see valve listings and part numbers above (0.6 L to 100 L).
• Packaging: AMT indicates typical amount per package (typically 10, 5 or 3 depending on size and valve type).
