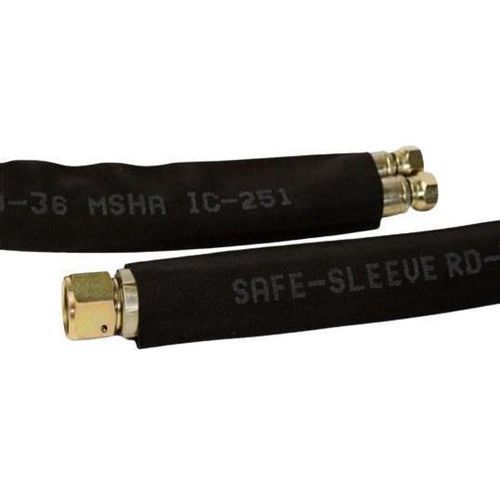

Nylon hose sleeve

polyamidehosewear-resistant

Product overview
Uni Safe nylon (polyamide) sleeves are manufactured from a special high-performance fiber to protect personnel and equipment near machinery from hydraulic hose bursts and pinhole leaks. They also serve for cable and wire bundling and other protective applications in industrial environments.

Key properties

• High tensile strength with good flexibility
• Abrasion and wear resistance up to >200,000 cycles
• Chemical resistance to heat, oil, grease, gasoline and many industrial chemicals
• Good electrical insulation
• Operating temperature range: -40 °C to +120 °C

Applications

• Protection against hydraulic hose ruptures and pinhole leaks
• Bundling and protection of wires and cable harnesses
• Machine and equipment safety in industrial, mobile and maintenance contexts

Packaging & availability
Available in 50 m rolls and in pre-cut lengths to suit installation requirements.

Sizes (Flat / Inner Dia)
Sl.No. — Flat — Inner Dia
1 — 30 — 17
2 — 35 — 20
3 — 40 — 23
4 — 45 — 27
5 — 50 — 30
6 — 55 — 33
7 — 60 — 36
8 — 65 — 39
9 — 75 — 46
10 — 90 — 55
11 — 100 — 62
12 — 110 — 68
13 — 125 — 78
14 — 135 — 85
15 — 175 — 109
16 — 200 — 125

Dimensions (OD / ID / WALL / WIDTH)
OD — ID — WALL — WIDTH
20 — 17 — 1.5 — 27
25 — 22 — 1.5 — 27
30 — 27 — 1.5 — 27
35 — 32 — 1.5 — 27
40 — 36 — 1.5 — 30
45 — 39 — 1.5 — 30
50 — 46 — 1.5 — 30
55 — 51 — 1.5 — 30

Sleeve ferrules

• Metal ferrules are available to seal and secure sleeve ends.
• Ferrules ensure a reliable termination for protective routing on hoses and cables.

Technical specifications

• Brand: Unitech Products
• Product name: UNI-SAFE Nylon (PA) Sleeve
• Material: Nylon / Polyamide (special fiber)
• Function: Protection against hydraulic hose ruptures and leaks; cable harness organization
• Abrasion resistance: up to >200,000 cycles
• Chemical resistance: resistant to heat, oil, grease, gasoline and many chemicals
• Electrical insulation: good
• Temperature range: -40 °C to +120 °C
• Packaging: 50 m rolls and pre-cut lengths
• Available sizes: see Flat/Inner Dia and OD/ID/WALL/WIDTH tables above
