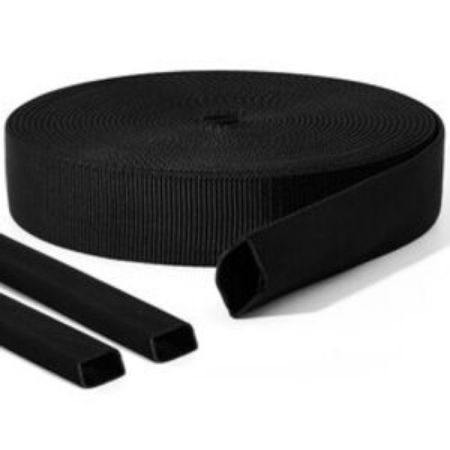

Insulating sleeve

protectionwear-resistanttubular

Product overview
UNI-SAFE nylon (polyamide) sleeves are manufactured from a specialized high-performance fiber to protect personnel and equipment from hydraulic hose ruptures and pinhole leaks. They are also suitable for bundling cables and wires and for general abrasion protection.

Properties

• High strength and flexibility
• Good abrasion resistance: >200,000 cycles
• Chemical resistance: resistant to heat, oil, grease, gasoline and many chemicals
• Good electrical insulation
• Operating temperature range: -40 °C to +120 °C

Availability
Supplied in 50 m rolls and available in pre-cut lengths on request.

Sleeve sizes (Flat / Inner Dia)

• 1 — Flat 30 mm / Inner Ø 17 mm
• 2 — Flat 35 mm / Inner Ø 20 mm
• 3 — Flat 40 mm / Inner Ø 23 mm
• 4 — Flat 45 mm / Inner Ø 27 mm
• 5 — Flat 50 mm / Inner Ø 30 mm
• 6 — Flat 55 mm / Inner Ø 33 mm
• 7 — Flat 60 mm / Inner Ø 36 mm
• 8 — Flat 65 mm / Inner Ø 39 mm
• 9 — Flat 75 mm / Inner Ø 46 mm
• 10 — Flat 90 mm / Inner Ø 55 mm
• 11 — Flat 100 mm / Inner Ø 62 mm
• 12 — Flat 110 mm / Inner Ø 68 mm
• 13 — Flat 125 mm / Inner Ø 78 mm
• 14 — Flat 135 mm / Inner Ø 85 mm
• 15 — Flat 175 mm / Inner Ø 109 mm
• 16 — Flat 200 mm / Inner Ø 125 mm

OD / ID / WALL / WIDTH options

• OD 20 mm | ID 17 mm | Wall 1.5 mm | Width 27 mm
• OD 25 mm | ID 22 mm | Wall 1.5 mm | Width 27 mm
• OD 30 mm | ID 27 mm | Wall 1.5 mm | Width 27 mm
• OD 35 mm | ID 32 mm | Wall 1.5 mm | Width 27 mm
• OD 40 mm | ID 36 mm | Wall 1.5 mm | Width 30 mm
• OD 45 mm | ID 39 mm | Wall 1.5 mm | Width 30 mm
• OD 50 mm | ID 46 mm | Wall 1.5 mm | Width 30 mm
• OD 55 mm | ID 51 mm | Wall 1.5 mm | Width 30 mm

Sleeve ferrules

• Metal ferrules are available to terminate and seal the ends of the protection sleeves.

Technical specifications

• Material: Nylon (Polyamide)
• Intended use: Protection against hydraulic hose ruptures and pinhole leaks; cable and wire bundling
• Abrasion resistance: >200,000 cycles
• Chemical resistance: good resistance to heat, oil, grease, gasoline and other chemicals
• Electrical properties: good electrical insulation
• Temperature range: -40 °C to +120 °C
• Packaging: 50 m rolls; pre-cut lengths available on request
• Available sizes: see sleeve sizes list (Sl. No. 1–16)
• OD/ID/WALL/WIDTH options: see options list above
