Protection sleeve

thermal protectionfire protectionbraided

Product overview

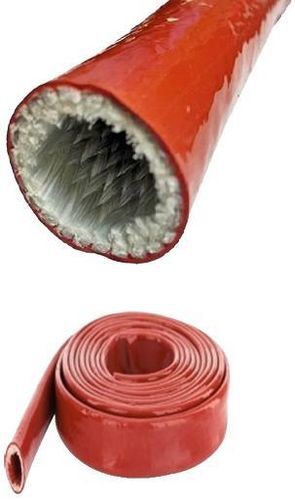

Our fire-retardant sleeve is braided from glass fibre threads coated with silicone rubber. It provides thermal protection for cables and hoses in high-temperature and emergency situations.

Properties

• Continuous temperature: 260°C
• Short-term exposure: 1600°C / 30 s
• Extended exposure: 1000°C / 20 min
• Colour: red

Specification (available IDs and roll length)

• Available inner diameters (mm): 10, 12, 15, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100
• Standard roll length: 25 m

Fire tape
100% silicone rubber tape for sealing sleeve ends; withstands contact temperatures up to +260°C and is supplied as an accessory for end sealing.

Technical specifications

• Material: glass fibre braided threads coated with silicone rubber
• Continuous temperature rating: 260°C
• Short-term exposure: 1600°C for 30 seconds
• Extended exposure: 1000°C for 20 minutes
• Colour: red
• Available IDs (mm): 10, 12, 15, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100
• Standard roll length: 25 m
• Accessory: 100% silicone fire tape for sealing sleeve ends
