Hose protection spiral

acid-resistantcold-resistantchemical-resistant

Description

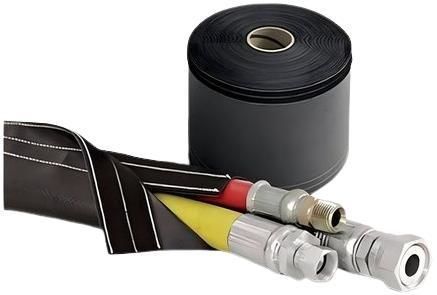

UNI-SAFE WRAP is a self-fastening wrap manufactured from polyurethane-coated polyester fabric. It is designed to organize and protect bundles of hoses, wires and cables and can be installed immediately after assembly without tools.

Properties

• Resistant to acids, oils and solvents
• UV-protected
• Pin hole protection as per ISO 3457 and ISO 4413
• Abrasion resistance > 200 000 cycles
• Temperature range: -50°C to +140°C
• Colour: black

Available sizes (table)
(ID) INNER DIAMETER | FLAT LENGTH | ROLL LENGTH
20 | 83 | 25
40 | 155 | 25
50 | 190 | 25
60 | 220 | 25
80 | 285 | 25
100 | 345 | 25
120 | 410 | 25
150 | 500 | 25

All sizes are also available on request.

Technical specifications

• Material: polyurethane-coated polyester fabric
• Design: self-fastening wrap for easy installation after assembly
• Application: organizing and protecting bundles of hose, wire and cable
• Chemical resistance: acids, oils and solvents
• UV protection: yes
• Standards: pin hole protection as per ISO 3457 and ISO 4413
• Abrasion resistance: > 200 000 cycles
• Temperature range: -50°C to +140°C
• Colour: black
• Available inner diameters (ID): 20, 40, 50, 60, 80, 100, 120, 150
• Flat length values (mm): 83, 155, 190, 220, 285, 345, 410, 500
• Roll length (m): 25 (as listed in table)
