Ring in-line desuperheater
Consists of: radial injection body + separate control valve.
Designed for stable flows and pressures and medium-low pressure services in diameters up to 4”.
Also for applications where minimal desuperheated water flow is required.
Separate desuperheater with fixed nozzles
Consists of injection loop with fixed nozzles + separate control valve.
Designed for stable flows and pressures and medium-low pressure services in line diameters starting at 6”.

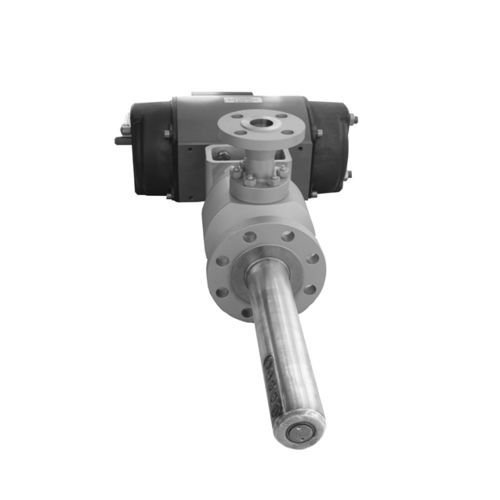

Integrated desuperheater with variable nozzles
Consists of: integrating self-regulating desuperheater comprised of an injection jet with variable nozzles, actuator and positioner.
Water flow regulation is carried out by the desuperheater itself, processing the signal from a standard control loop. Does not require separate control valve.
Designed for variable steam flows with cases of low water speed and/or flow, optimal desuperheating in the entire range. HIGH RANGEABILITY.
The integrated desuperheater combines precision in the amount of water to be injected, through progressive nozzle opening, with availability of constant water pressure in the entire range, for appropriate atomisation.
Steam-assisted desuperheaters
Also called motive steam or jet-assisted.
Consists of: assist water and steam injection jet via a dual nozzle + separate control valve.
