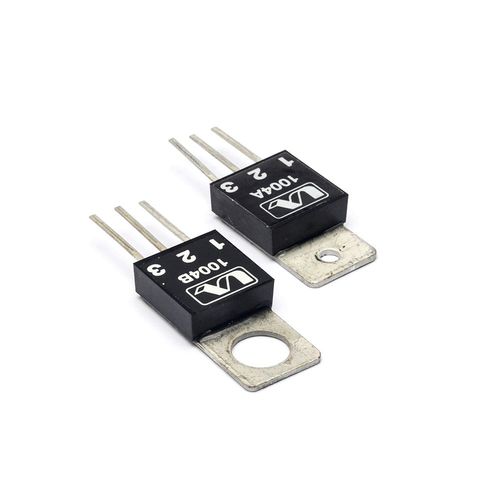

Electronic power regulator CSR series

The CSR power regulator chip is a compact and robust unit, which is capable of controlling single phase mains driven loads of up to 15A. Used in conjunction with variable resistance (potentiometer), the chip gives a fully adjustable output from zero to maximum voltage. APPLICATIONS Suitable for conventional resistive heating elements such as ovens, quartz lamps, moulders and dryers. They are also suitable for many inductive loads such as, transformers, fans and motors FEATURES · Available in 6, 10, and 15A ratings. · Flexibility of mounting. · Easy installation (three pin connections). · Isolated tab. · Low cost
