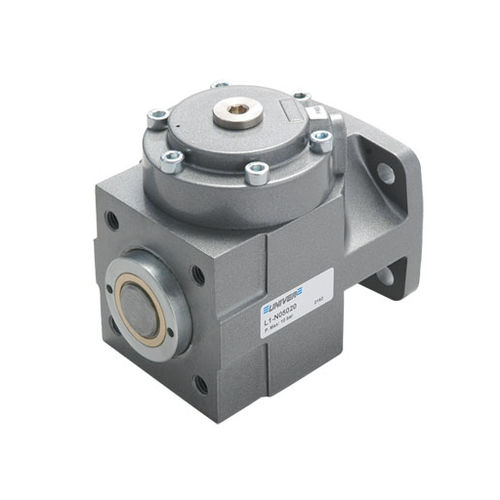

Pneumatic linear brake L1-N series

rod lockfor cylinders

A product which combines the familiar and traditional aspect of the UNIVER locking unit and a new and revolutionary “elastic heart “ capable to improve its performances under every point of view. Maximum locking force, excellent response time, high cinetic energy which can be dissipated, excellent locking repeatibility, high resistance to shock and vibrations. TECHNICAL CHARACTERISTICS Fluid: filtered air, with or without lubrication Working pressure: 4,5 -s- 10 bar Ambient temperature: -20°80 °C TECHNICAL CHARACTERISTICS *prearranged only for chromium-plated steel rods *the new series is completely interchangeable with the old one *the new locking units tolerate without problems load variations as well as the application of sudden loads. *the new series of locking units functions without problems also if rods or shafts are dirty with oil or grease. *Safety standards are perfectly complied with: the air pressure can only be used for releasing the device (4 bar). *alternatively it is possible to use the integrated cylinder locking unit as shown on page 59-11.
