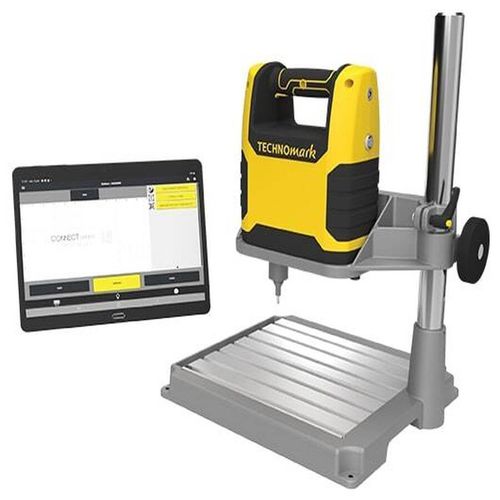

Dot peen marking system comby

semi-automaticindustrialmetal

The new Comby is the latest addition to the Connect.series range of dot peen marking solutions giving you a true 2 in 1 portable and bench system in one. The marking head is wirelessly controlled by a tablet and can be used anywhere thanks to Technomark's easy to use app and it's secure wifi connection. The Comby can also be used in benchtop mode thanks to its robust all-in-one column and base. Swap easily between bench and handheld mode in a few seconds. • Marking window 120mm x 60mm • Ability to mark components up to 295mm in height • 11 marking forces to enable marking from very light to deep to allow for post marking treatments such as paint or galvanising • Intelligent software offering 2 user modes - Administrator (for creating marking files) and Production (for opening and filing pre-configured files) • Wireless communication between the marking head and Android tablet utilising secure Wi-Fi connection • Mark flat and curved components with 5 in 1 support foot as well as easy marking on uneven surfaces • Mark all types of data including alphanumeric, datamatrix codes, graphics, logos etc • Latest technology 22V lithium ion battery in the head for hours of cable free marking when in handheld mode • Marking head has technical plastic shell with protective bumpers • Illuminated marking area • Option for rotary drive for marking around the diameter of cylindrical parts • 5-in-1 support foot allows marking on small and large cylinders with two pairs of locating V's. Magnetic support on the foot for secure positioning as well as an anti-slip foot.
