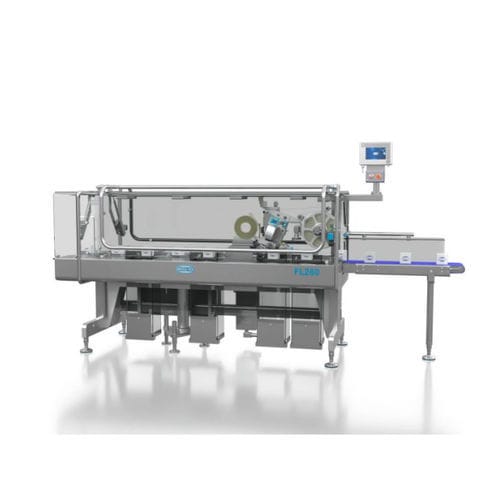

Cardboard box packaging machine

for the cosmetics industryfor the food industryfor the chemical industry

Our range of secondary packaging machines include even our EOL module, which includes check weigher, print & check and labelling machine for tamper evident and vignette. On request, we can install this end-of-line machine after the carton closing machine for flat blanks and pre-glued cartons. More in details, we provide this machine with 3 different stations: • The first unit controls cartons’ weights. If the carton is not compliant, the machine pushes it into the reject station; • After the first check, the carton is transferred into the second station. Here, variable data and DATAMATRIX (and possibily serialization code) get printed on the boxes. Then the camera vision system (OCV/OCR) will verify variable data and DATAMATRIX presence and correctness. Non-compliant cartons are pushed into the second reject station; • The last unit consists of a labeller(s) for tamper evident or vignette application. A control system will detect tamper evident / vignette presence and position. If the carton is not compliant, the machine pushes it into the third reject station. • Each rejection station includes a sensor to confirm that non compliant cartons are correctly rejected and a sensor to control rejection bin level.
