Single-column goods lift UP series
hydraulicfor the construction industryfor the food industry

Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry
Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry
Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry - image - 2
Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry - image - 3
Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry - image - 4
Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry - image - 5
Single-column goods lift - UP series - Updinamic - hydraulic / for the construction industry / for the food industry - image - 6
Add to favorites
Compare this product

Characteristics

Operation
hydraulic
Application domain
for the construction industry, for the food industry, for the pharmaceutical industry, for the metallurgical industry
Applications
for warehouse, for pallet, for food products, for mechanical components, for boxes, for bulk materials, for conveyor
Other characteristics
single-column, for heavy loads, handling, ATEX, custom-made, self-supporting, heavy-duty
Carrying capacity

Min.: 300 kg
(661.4 lb)

Max.: 2,500 kg
(5,511.6 lb)

Lifting height

2 m, 16 m
(6'06" , 52'05" )

Lifting speed

Min.: 0.1 m/s
(0.33 ft/s)

Max.: 0.15 m/s
(0.49 ft/s)

Description

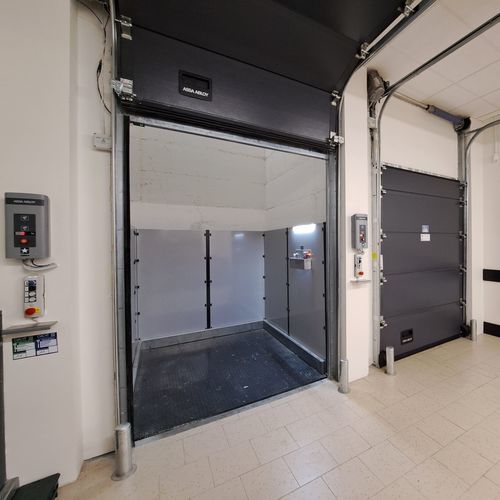

Single-mast hydraulic lifting system certified for the transport of goods with attendant on board. Load capacity range from 300Kgs up to 2500Kgs. Given its taylor made features, it could be perfectly used as a mezzanine goods-lift. UP goods-only With the entire loading area optimized for material only, it is suitable for connecting multiple levels with operators present on the landings. Suitable to be installed in automated industrial warehouses. UP SPB with ATTENDANT on board Allows the attendant to operate the system on board in complete safety. This system improves usability and work capacity by reducing material loading and unloading time.
